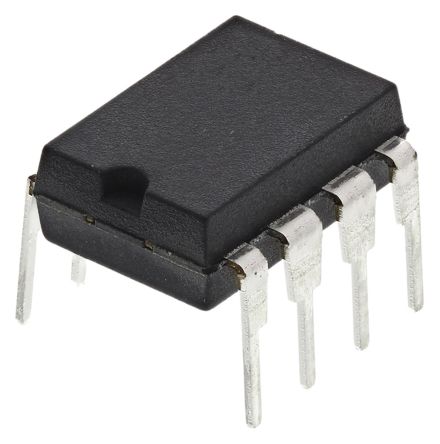

SP485ES-L
| Manufacturer | |
| Description | RS-485 Interface IC RS485 5000 kbps temp -40C to 85C Single Transmitter/Receiver RS-422/RS-485 8-Pin PDIP IC TXRX RS485 HALF DUPLEX 8PDIP Transceiver,Driver,Receiver,RS485,RS422 TRX, RS485, LP, HALF DUPLEX, 8PDIP EXAR 5MBps 线路收发器, RS-422，RS-485接口, 差分接收器信号, 5 V, 8针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | RS-485 Interface IC | Standard Package | 50 |
| Factory Pack Quantity | 50 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423990 | Rad Hardened | No |
| ESD Protection | No | ||
Electrical
| Data Rate | 5 Mbps | Interface | RS-422, RS-485 |
| Input Signal | Differential | Signal Types | Differential |
| Power - Input | Single | Data Rate (Max) | Multidrop|Multipoint |
| Current - Output | 900 uA | Current - Supply | 0.9(Typ) |
| Voltage - Supply | 5 V | Power Supply Type | Single |
| Receiver Hysteresis | 10mV | Power Dissipation (Max) | 500 mW |
| Voltage - Supply Span (Typ) | Not Required V | Number of Receivers per Line | 1 (RS422), 1 (RS485) |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 7.11mm | Height | 4.95mm |
| Length | 10.16mm | Weight | 0.002022 |
| Packaging | Tube | Case Color | :DIP |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :8 |
| Package / Case | PDIP-8 | Package Cooled | PDIP |
| Material Finish | :- | Package Quantity | PDIP |
| Size / Dimension | 10.16 x 7.11 x 4.95mm | Number of Positions | 8 |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Type | Transceiver | Duplex | Half |
| Series | SP483 / SP485 | Function | Half Duplex |
| Protocol | RS485 | Shutdown | Yes |
| Base Unit | :485 | Number of Drivers | 1 |
| Number of Receivers | 1 | Number of Transmitters | 1 |
| Number of Drivers/Receivers | 1/1 | Number of Transmitters/Receivers | 1 |
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
