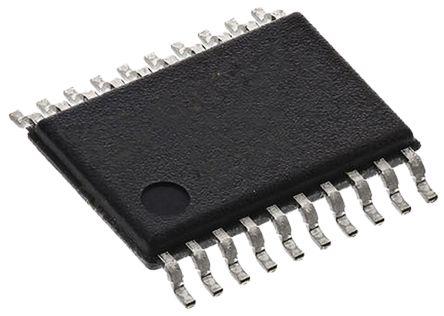

点击放大查看
SP3222EUEY-L
| Manufacturer | |
| Description | RS-232 Interface IC 1MBPS 3-5.5V RS-232 2-DRV/2-RCV LOW PWR Dual Transmitter/Receiver RS-232 20-Pin TSSOP IC TXRX RS232 ESD TRUE 20TSSOP Transceiver,Driver,Receiver,2/2 RS232 EXAR 1MBps 双线收发器, RS-232接口, 2-TX 2-RX, 3 → 5.5 V, 20针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | RS-232 Transceivers | Product Category | RS-232 Interface IC |
| Standard Package | 74 | Factory Pack Quantity | 74 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Data Rate | 1Mbps(Min) | Interface | EIA/TIA-232-F|EIA/TIA-562|ITU-T V... |
| Input Signal | Single-Ended | Signal Types | Single-Ended |
| Output Signal | 单端 | Power - Input | 单 |
| Data Rate (Max) | Point-to-Point | Current - Output | 0.3 mA |
| Current - Supply | 300 uA | Voltage - Supply | 3 V ~ 5.5 V |
| Number of Outputs | 2 | Power Supply Type | Single |
| Receiver Hysteresis | 300mV | Number of Receivers per Line | 2 (RS232) |
| Load Side Connections Per Pole | 1 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 4.5mm | Height | 1.05mm |
| Length | 6.6mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 20 |
| Package / Case | TSSOP-16 | Package Cooled | TSSOP |
| Package Quantity | TSSOP | Size / Dimension | 6.6 x 4.5 x 1.05mm |
| Number of Positions | 20 | Supplier Device Package | 20-TSSOP |
Product Info
| Type | Transceiver | Duplex | Full |
| Series | SP3222E | Function | Transceiver |
| Protocol | RS232 | Manufacturer | Exar |
| Number of Receivers | 2 | Number of Transmitters | 2 |
| Number of Inputs and Type | 4 | Number of Drivers/Receivers | 2/2 |
| Number of Transmitters/Receivers | 1 | ||
Environmental
| Operating Temperature | + 85 C | ||
