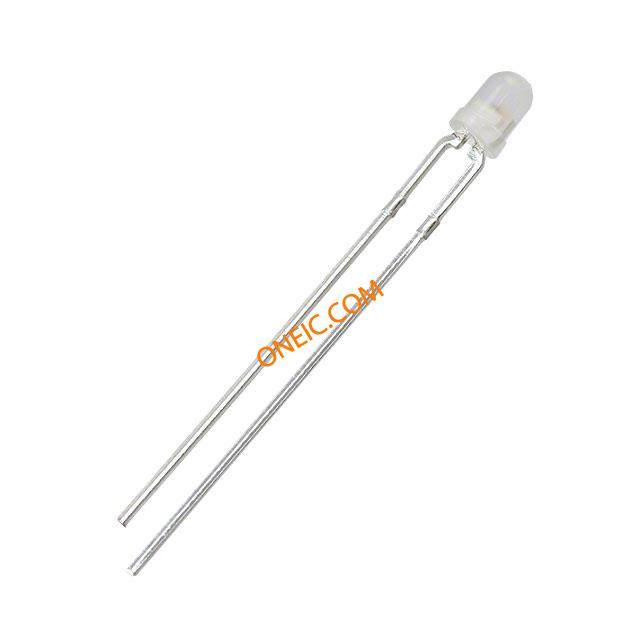

HLMPK105
| Manufacturer | |
| Description | LED Uni-Color Red 660nm 2-Pin T-100 Standard LEDs - Through Hole T-1 LED RED CLR LED ALGAAS HI INT RED CLEAR 3MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1080-1066 | Part # Aliases | 512-HLMPK105 |
| Product Category | Standard LEDs - Through Hole | Standard Package | Tape & Reel |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Optic Size | T-1 | Lamp Output | No |
| Luminous Flux | 65 mcd | Viewing Angle | 45 ° |
| Current - Output | 20mA | Voltage - Supply | 1.8V |
| Wavelength - Peak | 660 nm | LED Forward Current | 20 mA |
| LED Forward Voltage | 1.8 V | Millicandela Rating | 65mcd |
| Current Rating (Max) | 20mA | Wavelength - Dominant | 660 nm |
| Power Dissipation (Max) | 87 | Current - Peak Pulse (10/1000us) | 30 |
| MSCP (Mean Spherical Candle Power) | 65mcd | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical
| Color | Red | Height | 4.50mm |
| Packaging | Bulk | Lens Color | Water Clear |
| Lens Style | Circular | Lens Diameter | 3 mm |
| Mounting Type | Through Hole | Mounting Style | Top Mount |
| Package / Case | 2T-100 | Lens Style/Size | Round with Domed Top, 3mm, T-1 |
| Material - Core | GaAlAs | Package Quantity | T-100 |
| Diameter - Outside | 3.15 | Illumination Color | Red |
| Number of Positions | 2 | Shell Size - Insert | 4.8(Max) |
Product Info
| Type | Uni-Color | Lens Type | Colored Non Diffused |
| Number of LEDs | 1 | Output Configuration | Through Hole |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | + 100 C | Luminous Flux @ Current/Temperature | 65 mcd |
