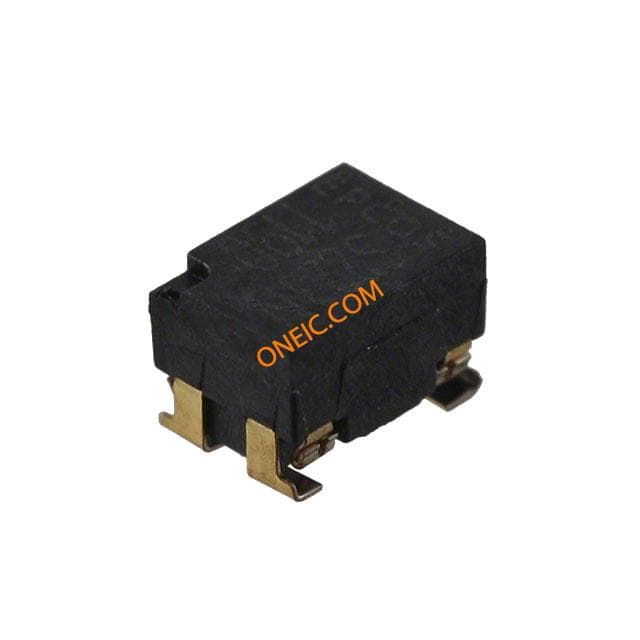

B82799S223N1
| Manufacturer | |
| Description | Common Mode Filters / Chokes 0.022mH 250mA 170mohms Common Mode Chokes Dual 22uH 100kHz 250mA 170mOhm DCR SMD Blister T/R CAN Bus double choke SMT 22uH 250mA INDUCTOR, 22UH, 30%, 100MA, RING CORE DBL CHOKE 22UH SMD SMDCHOKE22UH250MA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Other Names | 495-4418-1 |
| Part # Aliases | B82799S0223N001 | Product Category | Common Mode Filters / Chokes |
| Standard Package | 2,500 | Factory Pack Quantity | 2500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Current | 250mA | Core Type | :Asymmetrical / Symmetrical |
| Tolerance | 30 % | Inductance | 22 uH |
| Filter Type | Data, Signal Line | Range deg/s | :EPCOS - B82799S0 Series |
| Test Frequency | 100k | Voltage Rating | 42VAC|80VDC |
| Inductance Range | :1300nH | Current Rating - DC | :250mA |
| DC Resistance (DCR) | 170 mOhm | Voltage - Breakdown | 250VDC |
| Current Rating (Max) | 250 mA | DC Resistance (DCR) (Max) | :0.2ohm |
| Inductance Frequency - Test | :100kHz | Resistance - Initial (Ri) (Min) | 170 mOhms |
| Current - On State (It (RMS)) (Max) | :100mA | ||
Mechanical
| Depth | 3.2mm | Width | 3.2 mm |
| Height | 3.2mm | Length | 4.5mm |
| Weight | 0.00008 | Packaging | Reel |
| Termination | :SMD | Height (Max) | 0.126" (3.20mm) |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Number of Pins | :4 | Package / Case | 1812 (4532 metric) |
| Length - Overall | 4.7 | Size / Dimension | 3.2 mm W x 4.5 mm L x 3.2 mm H |
| Termination Style | SMD/SMT | Dimensions - Overall | :4.5mm x 3.2mm x 3mm |
Product Info
| Type | Common Mode Choke, Ring Core | Series | B82799S0 |
| Configuration | Dual | Number of Lines | 2 |
Environmental
| Operating Temperature | :40/125/56 | ||
