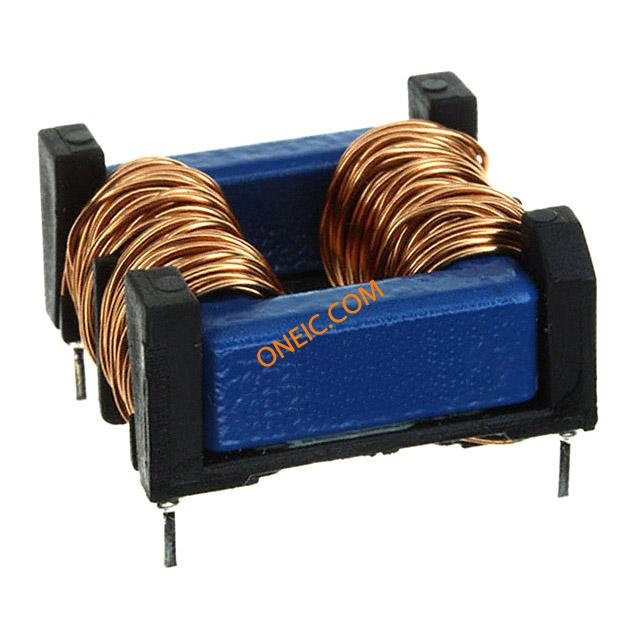

B82733F2701B1
| Manufacturer | |
| Description | Fixed Inductors PTH-CHOKE FC23 Common Mode Chokes Dual 100mH 10kHz 700mA 1.81Ohm DCR Thru-Hole Box POWER LiNe CHOKE COIL CHOKE 100MH 700MA PIN PTH-CHOKEFC23 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Part # Aliases | B82733F2701B001 |
| Standard Package | 280 | Factory Pack Quantity | 280 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85045095 | ||
Electrical
| Current | 700mA | Tolerance | - 30 %, + 50 % |
| Inductance | 2.1m | Filter Type | Power Line |
| Range deg/s | :EPCOS - B82733F Series | Test Frequency | 10k |
| Voltage Rating | 250VAC | Current Rating - DC | :700mA |
| DC Resistance (DCR) | 1.81 Ohm | Voltage - Breakdown | 2kVAC |
| Current Rating (Max) | 700 mA | DC Resistance (DCR) (Max) | :1.81ohm |
| Resistance - Initial (Ri) (Min) | 1.81 Ohms | ||
Mechanical
| Depth | 24.8 | Width | 24.8 mm |
| Height | 14 | Weight | 0 |
| Packaging | Box | Height (Max) | 0.551" (14.00mm) |
| Core Material | Ferrite | Mounting Type | Through Hole |
| Package / Case | 26.5 mm | Length - Overall | 26.5 |

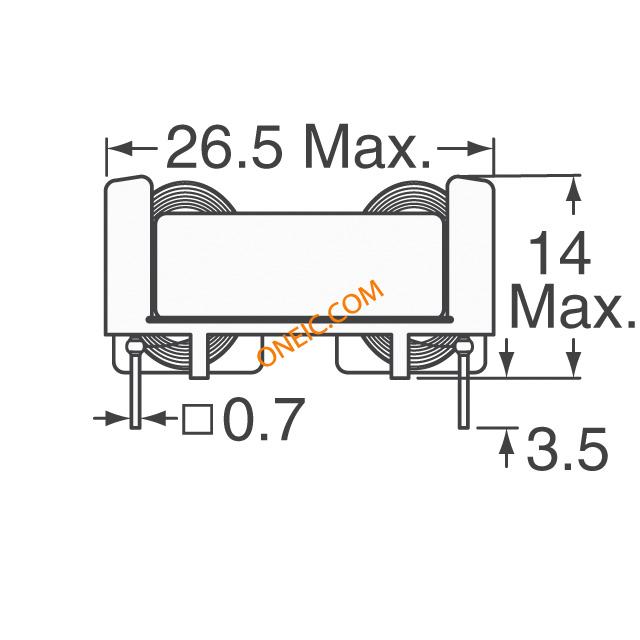

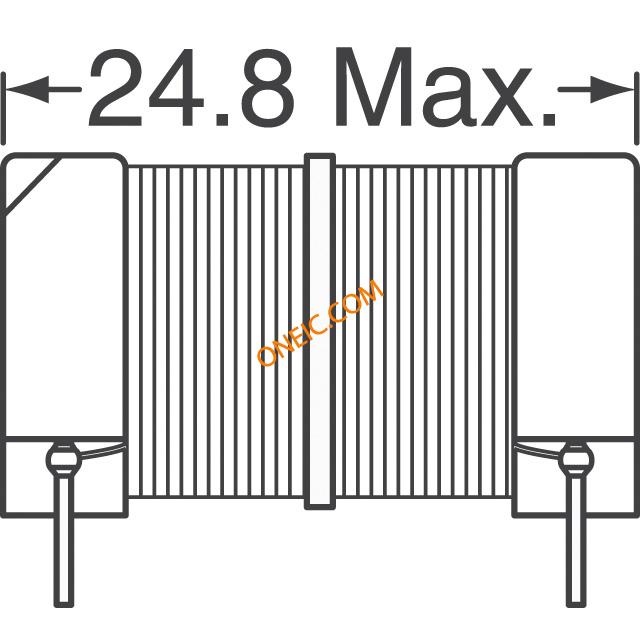

| Size / Dimension | 24.8 mm W x 26.5 mm L x 14 mm H | Termination Style | Radial |
| Dimensions - Overall | :26.5mm x 24.8mm x 14mm | ||
Product Info
| Type | Power Line | Series | B82733F |
| Configuration | Dual | Number of Lines | 2 |
Environmental
| Operating Temperature | - 25 C to + 40 C | ||
