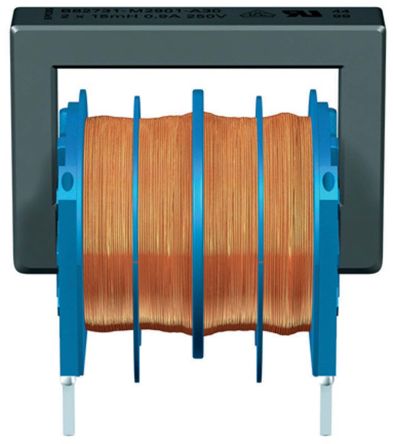

点击放大查看
B82731M2901A030
| Manufacturer | |
| Description | Fixed Inductors 15mH 0.9A - 30%/+50% 21x10mm Radial CHOKE, D CORE, 15MH, 0.9A EPCOS B82731M 系列 15 mH -30 → +50% 铁氧体 共模扼流圈, 10kHz最大自谐振频率, 900mA Idc, 600mΩ Rdc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Factory Pack Quantity | 800 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Power Line Choke | Tolerance | - 30 %, + 50 % |
| Inductance | 15 mH | Range deg/s | :EPCOS - B82731M Series |
| Inductance Range | :+50%, -30% | Current Rating - DC | :900mA |
| Current Rating (Max) | 0.9 A | DC Resistance (DCR) (Max) | :0.6ohm |
| Resistance - Initial (Ri) (Min) | 600 mOhms | ||
Mechanical
| Width | 10 mm | Weight | 0.026 |
| Packaging | Tray | Core Material | :Ferrite |
| Number of Pins | :4 | Package / Case | 20 mm |
| Size / Dimension | 10 mm W x 21 mm L x 20 mm H | Termination Style | Radial |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
