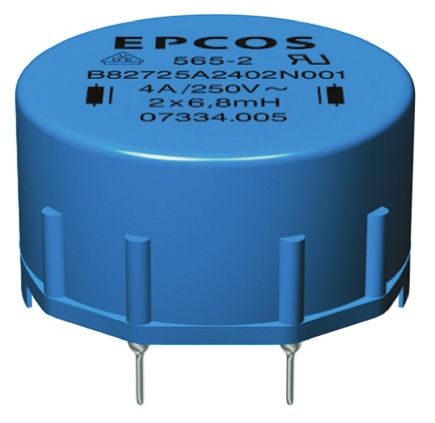

B82725A2402N001
| Manufacturer | |
| Description | Common Mode Chokes Dual 6.8mH 10kHz 4A 80mOhm DCR Thru-Hole Box CHOKE, RING CORE, DOUBLE, 6.8MH, 4A EPCOS B82721A 系列 6.8 mH ±30% 铁氧体 电流补偿扼流圈, 4A Idc, 80mΩ Rdc |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85045095 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Core Type | :Power Line Choke | Impedance | Not Required ohm |
| Tolerance | 30% | Inductance | 6800 uH |
| Range deg/s | :EPCOS - B82725A Series | Test Frequency | 0.1 MHz |
| Inductance Range | :± 30% | Current Rating - DC | :4A |
| Current Rating (Max) | :4A | DC Resistance (DCR) (Max) | :0.08ohm |
| Current - DC Forward (If) (Max) | 4000 mA | ||
Mechanical
| Depth | 42.4 mm | Height | 25 mm |
| Weight | 0.026 | Diameter | Not Required mm |
| Packaging | Box | Lead Style | Pin |
| Lead Spacing | 15 mm | Core Material | Ferrite |
| Number of Pins | :4 | Package / Case | :Through Hole |
| Length - Overall | 44 mm | ||
Product Info
| Type | Power Line Choke | DELETED | Compliant |
| Failure Rate | Not Required | ||
