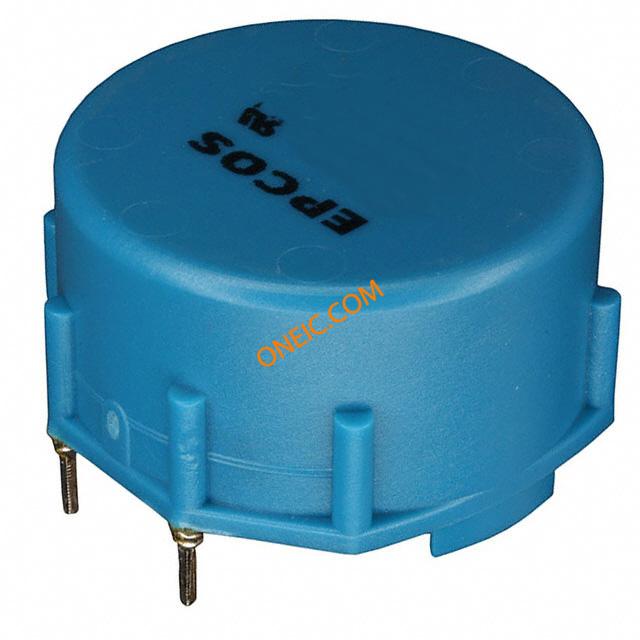

B82725A2202N1
| Manufacturer | |
| Description | Fixed Inductors 18mH 2.0A 330mohms COIL CHOKE 18MH 2.0A RADIAL CHOKE, COMMON MODE, 2X18MH, 2.0A RINGCORECHOKE2X18mH2A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Part # Aliases | B82725A2202N001 |
| Product Category | Fixed Inductors | Standard Package | 80 |
| Factory Pack Quantity | 160 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | Approval Agency | :VDE 565-2 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Current | 2A | Core Type | :Common / Asymmetrical |
| Tolerance | 30 % | Inductance | 220 uH |
| Filter Type | Power Line | Range deg/s | :EPCOS - B82725A Series |
| Voltage Rating | :250V | Inductance Range | :± 30% |
| Current Rating - DC | :2A | DC Resistance (DCR) | 330 mOhm |
| Current Rating (Max) | 2 A | DC Resistance (DCR) (Max) | :0.35ohm |
| Resistance - Initial (Ri) (Min) | 330 mOhms | ||
Mechanical
| Depth | :42.4mm | Width | 42.4 mm |
| Length | :25.0mm | Weight | 0.026 |
| Packaging | Bulk | Height (Max) | 0.984" (25.00mm) |
| Lead Spacing | 40 mm | Pitch - Post | :20mm |
| Core Material | Ferrite | Mounting Type | Through Hole |
| Number of Pins | :4 | Package / Case | 25 mm |

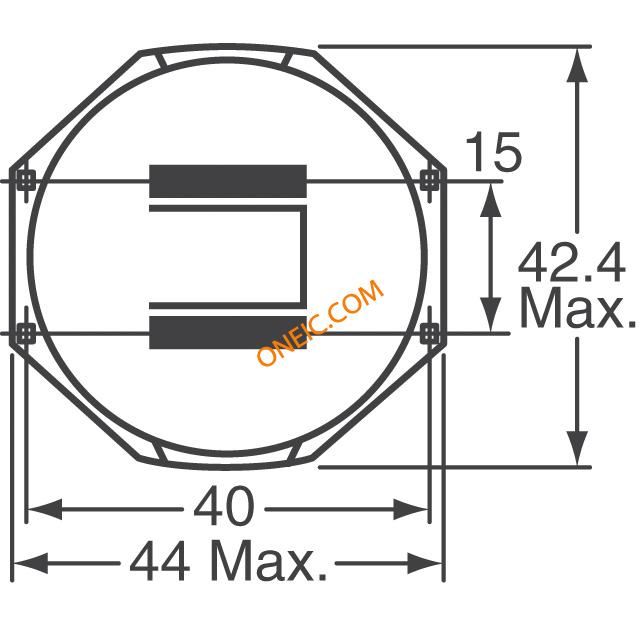

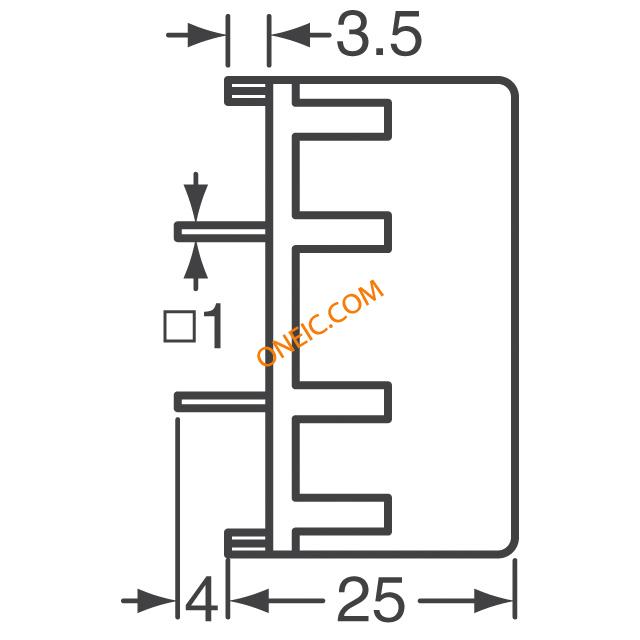

| Size / Dimension | 42.4 mm W x 44 mm L x 25 mm H | Termination Style | Radial |
Product Info
| Type | Power Line Chokes | Series | B82725A |
| Number of Lines | 2 | ||
Environmental
| Operating Temperature | - 25 C to + 60 C | ||
