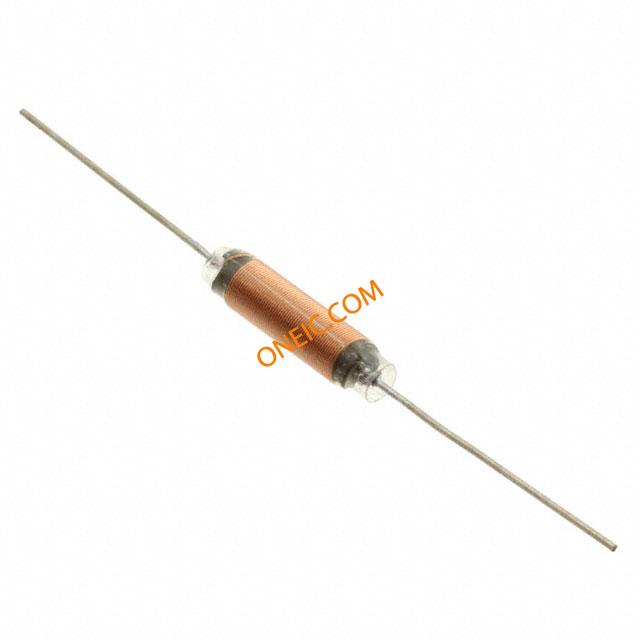

B82133A5302M
| Manufacturer | |
| Description | Fixed Inductors 10uH 3.0A 0.077ohms VHF Choke Wirewound 10uH 20% 1MHz Carbonyl Iron 3A 77mOhm DCR AXL T/R VHF-CHOKE 10UH 3 A INDUCTOR, 10UH, 20%, 3A, 69MHZ VHF-CHOKE10uH3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 495-5606-1 | Part # Aliases | B82133A5302M000 |
| Product Category | Fixed Inductors | Standard Package | 1,000 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Approval Agency | :VDE 565-2 | ||
Electrical
| Core Type | :Choke | Tolerance | 20 % |
| Inductance | 10 uH | Resistance | 77mΩ |
| Range deg/s | :EPCOS - B82133 Series | Test Frequency | 1M |
| Voltage Rating | :500V | Inductance Range | :± 20% |
| Current Rating - DC | :3A | DC Resistance (DCR) | 77 mOhm |
| Current Rating (Max) | 3 A | Resistance Tolerance | :3% |
| DC Resistance (DCR) (Max) | :0.077ohm | Frequency - Self Resonant | 69 MHz |
| Inductance Frequency - Test | :1MHz | Resistance - Initial (Ri) (Min) | 0.077 Ohms |
Mechanical
| Height | :24mm | Length | :24mm |
| Weight | 0.003 | Diameter | 7.5 |
| Packaging | Bulk | Shielding | Unshielded |
| Lead Style | Axial | Core Material | Carbonyl Iron |
| Mounting Type | Through Hole | Package / Case | Axial |
| Material - Core | Iron | Length - Overall | 26.4 |
| Size / Dimension | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | Termination Style | Axial |
| Diameter - Outside | :7.5mm | Dimensions - Overall | :7.5mm x 25mm |
Product Info
| Type | VHF Choke | Technology | Wirewound |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
