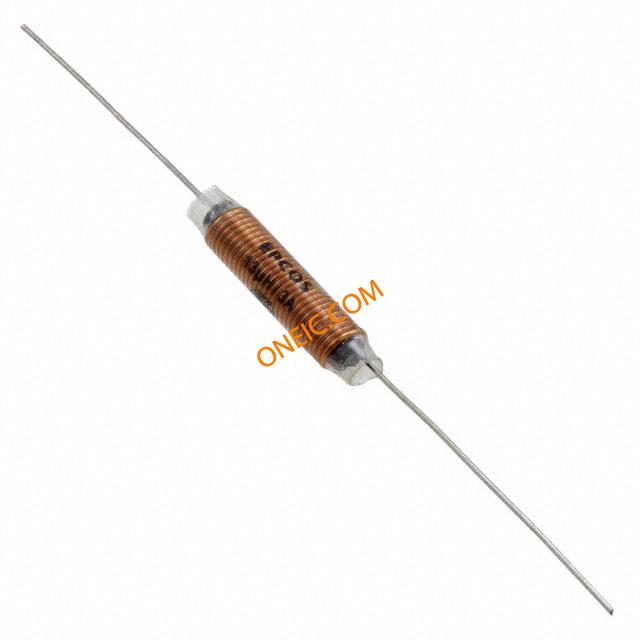

B82111BC19
| Manufacturer | |
| Description | Fixed Inductors VHF-CHOKE 13 UH 3 A VHF Choke Wirewound 13uH 20% 100KHz Ferrite 3A 24mOhm DCR AXL Bulk VHF-CHOKE 13UH 3 A VHF-CHOKE13uH3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | B82111B0000C019 | Standard Package | 1 |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Tolerance | 10 % | Inductance | 13 uH |
| Test Frequency | 100K | DC Resistance (DCR) | 24 mOhm |
| Current Rating (Max) | 3 A | Frequency - Self Resonant | 170 MHz |
| Resistance - Initial (Ri) (Min) | 0.024 Ohms | ||
Mechanical
| Diameter | 6.5 mm | Packaging | Bulk |
| Shielding | Unshielded | Lead Style | Axial |
| Core Material | Ferrite | Mounting Type | Through Hole |
| Package / Case | 29 mm | Material - Core | Ferrite |
| Length - Overall | 29 | Size / Dimension | 6.5 mm Dia. x 29 mm L |
| Termination Style | Axial | ||
Product Info
| Type | VHF Choke | Series | B82111B |
| Technology | Wirewound | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
