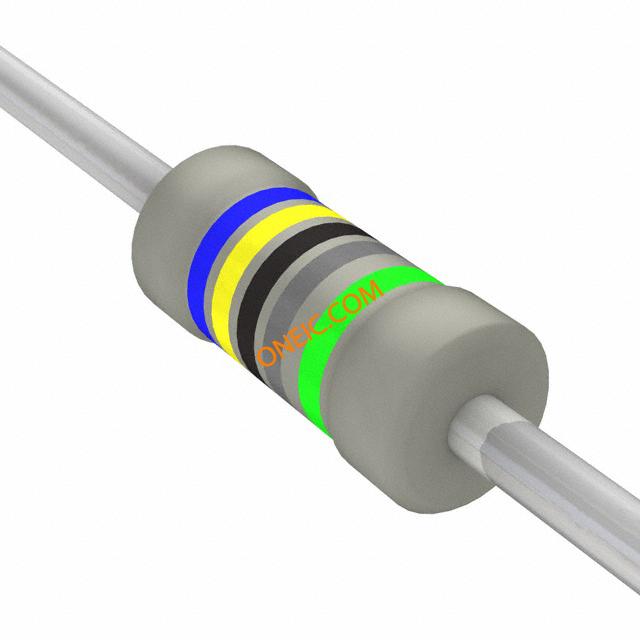

B78108S1334J
| Manufacturer | |
| Description | Fixed Inductors 330uH 190mA 6.4ohms RF Choke Bobbin Core 330uH 5% 100KHz 70Q-Factor Ferrite 190mA 6.4Ohm DCR AXL T/R CHOKE RF 330UH 190MA AXIAL Epcos 330μH ±5% Ferrite Leaded Inductor, Max SRF:2.7MHz, Q:70, 190mA Idc, 6.4Ω Rdc INDUCTOR, AXIAL, 330UH INDUCTOR,B78108-S1334-J |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 495-5563-1 | Part # Aliases | B78108S1334J000 |
| Product Category | Fixed Inductors | Standard Package | 5,000 |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
Electrical
| Q @ Freq | 70@796KHz | Core Type | :High Frequency / RF |
| Qmax @ Th | 70 | Tolerance | 5% |
| Inductance | 330u | Range deg/s | :EPCOS - B78108S BC Series |
| Test Frequency | 796kHz | Inductance Range | :± 5% |
| Current Rating - DC | :190mA | DC Resistance (DCR) | 6.4 Ohm Max |
| Current Rating (Max) | 190mA | DC Resistance (DCR) (Max) | :6.4ohm |
| Frequency - Self Resonant | 2.7MHz | Inductance Frequency - Test | :0.1MHz |
| Resistance - Initial (Ri) (Min) | 6.4Ω | ||
Mechanical
| Length | 11.5mm | Weight | 0.00039 |
| Diameter | 4mm | Packaging | Tape and Reel |
| Shielding | Unshielded | Lead Style | Axial |
| Pin Diameter | :0.63mm | Core Material | Ferrite |
| Mounting Type | Through Hole | Number of Pins | :2 |
| Package / Case | Axial | Material - Core | Ferrite |
| Length - Overall | 11.5 | Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Termination Style | Axial | Diameter - Outside | :4mm |
| Length - Lead Wire | :25mm | Dimensions - Overall | :4mm x 9.2mm |
| Supplier Device Package | Axial | ||
Product Info
| Type | RF Choke | Technology | Bobbin Core |
