B72735D50H62
| Manufacturer | |
| Description | ESD Suppressors Cera Diode Array CDA6C05GTH ESD Suppressor CeraDiode 15KV 6-Pin SOT-23 T/R VARISTOR 52V 1012 TVS ARRAY, CERADIODE, 5.6VDC, 1012 CASE CDA6C05GTH |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 495-3423-1 | Part # Aliases | B72735D0050H062 |
| Product Category | ESD Suppressors | Standard Package | 2,000 |
| Factory Pack Quantity | 2000 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85334010 | ESD Protection | 15@Air Gap/8@Contact Disc |
Electrical
| Channels | 4 Channels | Capacitance | 7 pF |
| TVS Polarity | :Bidirectional | Voltage Rating | 5.6 |
| Maximum DC Volts | 5.6VDC | Voltage - Supply | :5.6V |
| Number of Elements | 5 | Voltage - Clamping | 195 V |
| Diode Configuration | :- | Voltage - Breakdown | 52 V |
| Varistor Voltage (Max) | 52V | Voltage - Supply (Min) | 5.6 V |
| Current - Reverse Leakage @ Vr | 1 | ||
Mechanical
| Width | 2.75(Max) | Weight | 0 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :6 |

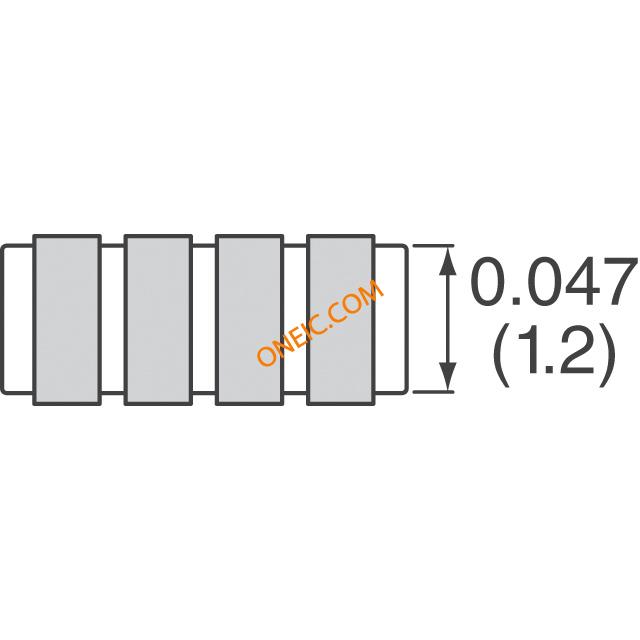

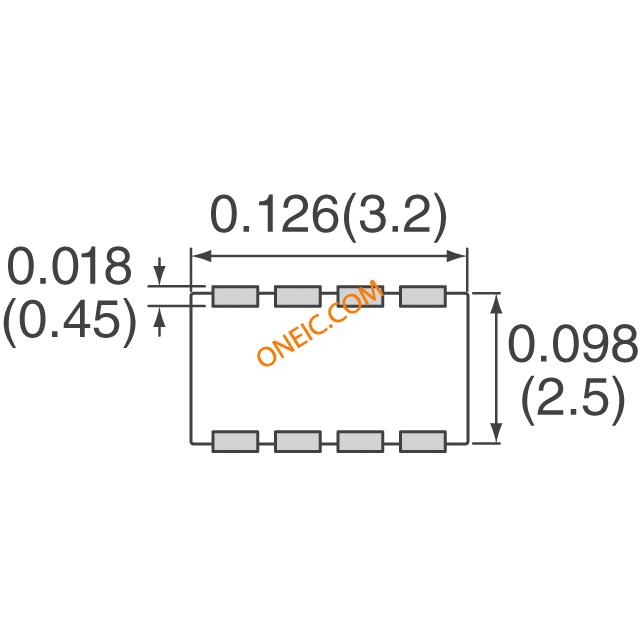

| Package / Case | 1012 (2532 Metric) | Length - Overall | 3.5(Max) |
| Package Quantity | SOT-23 | Termination Style | SMD/SMT |
| Number of Positions | 6 | Shell Size - Insert | 1.2(Max) |
Product Info
| Type | CeraDiode | Series | CeraDiodes High-Speed |
| Configuration | Quint | Port Direction | Bi-Directional |
| Number of Circuits | 4 | Printed Circuit Board | 6 |
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
