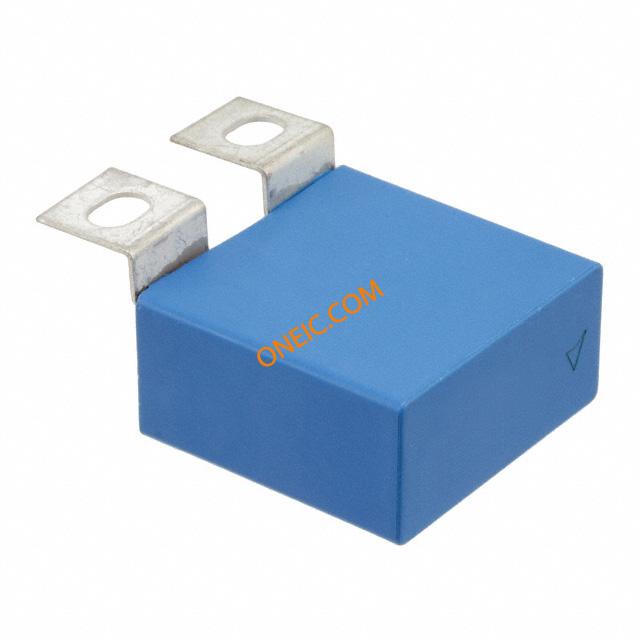

B32656S1334K561
| Manufacturer | |
| Description | Cap Film 0.33uF 1600V PP 10% (42 X 20 X 39.5mm) Screw Mount Plastic Can 0.009 Ohm 100°C Bulk Film Capacitors 0.3300uF 10% 1600V FILM CAP MKP BOXED CAP FILM 0.33UF 1.6KVDC SCREW FILMCAPMKPSNUBBER0.33µF10%1600Vdc Capacitor, radial 330 nF ±10% 1600 VDC / 750 VAC, B32656S1334K561, EPCOS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Metallized Polypropylene Capacitors | Standard Package | Bulk |
| Factory Pack Quantity | 24 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 1600|750 Vdc|Vac | Slew Rate | 600 V/µs |
| Tolerance | 10 % | Capacitance | 0.33 uF |
| Voltage Rating | 1.6 kV | ESR (Equivalent Series Resistance) | 9 mOhm |
Mechanical
| Depth | 20(Max) mm | Pitch | 23 |
| Width | 20 mm | Height | 39.5(Max) mm |
| Length | 20 | Packaging | Bulk |
| Lead Style | Straight | Termination | PC Pins |
| Construction | Plastic Can | Lead Spacing | 1.476" (37.50mm) |
| Mounting Type | Screw Mount | Package / Case | 42(Max) X 20(Max) X 39.5(Max) |
| Length - Overall | 42(Max) mm | Termination Style | Lug Terminal |
| Dielectric Material | PP | ||
Product Info
| Type | Snubber Capacitor | Series | B32656 |
| Applications | Snubber | Product Type | Snubber |
Environmental
| Temperature - Test | 55/100/56 | Operating Temperature | -55 to 100 °C |
