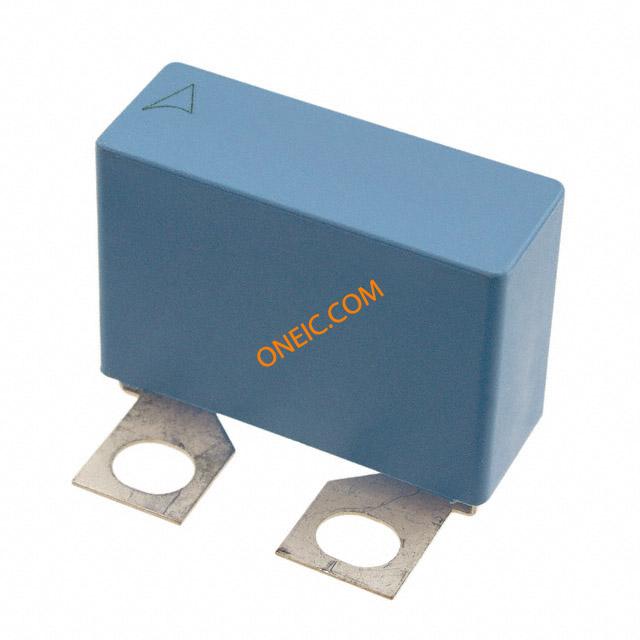

B32656S1224K565
| Manufacturer | |
| Description | Cap Film 0.22uF 1600V PP 10% (42 X 16 X 28.5mm) Screw Mount Plastic Can 0.01 Ohm 100°C Bulk Film Capacitors 0.22uF 1.6KV 10% CAP FILM 0.22UF 1.6KVDC SCREW FILMCAPMKPSNUBBER0.22µF10%1600Vdc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Metallized Polypropylene Capacitors | Product Category | Film Capacitors |
| Standard Package | Bulk | Factory Pack Quantity | 48 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 1600|750 Vdc|Vac | Tolerance | 10 % |
| Capacitance | 0.22 uF | Voltage Rating | 1.6 kV |
| ESR (Equivalent Series Resistance) | 10 mOhm | ||
Mechanical
| Depth | 16(Max) mm | Width | 16 mm |
| Height | 28.5(Max) mm | Packaging | Bulk |
| Lead Style | Straight | Termination | PC Pins |
| Construction | Plastic Can | Lead Spacing | 1.476" (37.50mm) |
| Mounting Type | Screw Mount | Package / Case | 42(Max) X 16(Max) X 28.5(Max) |
| Length - Overall | 42(Max) mm | Termination Style | Lug Terminal |
| Dielectric Material | PP | ||
Product Info
| Type | Snubber Capacitor | Series | B32656 |
| Applications | Snubber | Product Type | Snubber |
Environmental
| Operating Temperature | -55 to 100 °C | ||
