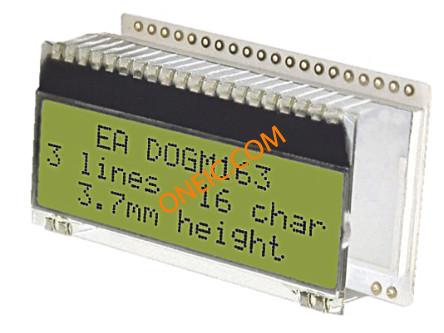

EA DOGM163E-A
| Manufacturer | |
| Description | LCD Character Display Modules & Accessories STN(+) Transmissive Yel/Grn Background LCD 16x3,SPI,4,8-bit I/F, Y/Green mode LCD MOD CHAR 3X16 Y/G Dot matrix LCD display 3.65 mm 3 x 16, EA DOGM163E-A, Electronic Assembly Electronic Assembly 透射式 字母数字 LCD 单色显示器 , 3行16个字符, 4位、8位、SPI 接口 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DOG LCD Character Display Modules | Other Names | 1481-1080 |
| Product Category | LCD Character Display Modules & Accessories | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Backlight | No backlight | Interface | 4 Bit, 8 Bit, SPI 4-wire |
| Resolution | 3 x 16 | Display Type | Graphic |
| Power - Input | 3.3...5 V | Voltage - Supply | 3.3 V / 5 V |
| LED Forward Current | LED, Ordering separately | ||
Mechanical
| Size | 55 mm x 31 mm x 2 mm | Depth | 2mm |
| Width | 55mm | Packaging | Bulk |
| Lamp Color | yellow-green | Height (Max) | 27.94mm |
| Mounting Type | PCB Mount | Number of Rows | 3 |
| Depth - Overall | 2mm | Background Color | Yellow/Green |
| Height - Overall | 14.5mm | Size / Dimension | 51 x 14.5mm |
| Illumination Color | Yellow-Green | Width - Outer Edges | 55mm |
| Dimensions - Overall | 27.94 x 55 x 2mm | Height - Seated (Max) | 27.94mm |
Product Info
| Form | Standard | Type | transmissive |
| Series | * | Pixel Size | 51mm |
| Technology | STN | Display Mode | Transmissive |
| Display Style | positive | Character Size | 3.65 x 2.47mm |
| Controller Type | ST7036 | Character Format | 3 Rows by 16 Characters |
| Digit/Alpha Size | 3.65 x 2.47mm | Number of Columns | 16 |
| Diagonal Screen Size | 14.5mm | Digits or Characters | 16 x 3 |
| Matrix (Columns x Rows) | STN | Number of Characters Per Row | 16 |
Environmental
| Fluid Type | STN Positive | Operating Temperature | - 20 C to + 70 C |
Documents & Media
PDF Document
PDF Document
Similar Parts
EA 9780-2USB
ELECTRONIC ASSEMBLY
Display Development Tools Starter/Demoboard Windows USB For DOGM EA 9780-2USB, USB Test Board Kit, LCD USB Test board for EA DOG displays USB Testboard, EA 9780-2USB, Electronic Assembly
$316.3360
Details

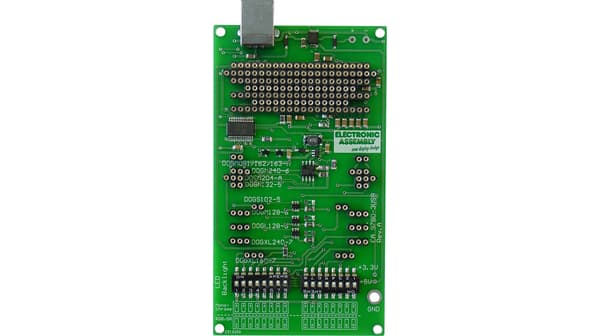

EA 9780-3USB
