EA DOGL128E-6
| Manufacturer | |
| Description | LCD Graphic Display Modules & Accessories STN (+) Transmissive Yel/Grn Background LCD graphic 128x64, SPI, Y/Green mode LCD MOD GRAPH 128X64 Y/G LCD-graphic display 128 x 64 Pixel, EA DOGL128E-6, Electronic Assembly |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1481-1055 | Product Category | LCD Graphic Display Modules & Accessories |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Backlight | Yellow / Green | Interface | SPI |
| Resolution | 128 x 64 | Display Type | Graphic |
| Power - Input | 3.0...3.3 V | Current - Output | 270 µA |
| LED Forward Current | LED | ||
Mechanical
| Size | 67.8 mm x 47.96 mm x 2.8 mm | Depth | 2.8mm |
| Width | 67.8mm | Packaging | Box |
| Lamp Color | yellow-green | Height (Max) | 47.96mm |
| Mounting Type | PCB Mount | Background Color | Yellow / Green |
| Height - Overall | 35mm | Illumination Color | Yellow-Green |
| Dimensions - Overall | 47.96 x 67.8 x 2.8mm | ||
Product Info
| Type | transmissive | Series | * |
| Dot Size | 0.50 x 0.46 | Display Mode | Transmissive |
| Viewing Area | 64 mm x 36 mm | Display Style | positive |
| Character Size | 4, 8 | Controller Type | ST 7565R |
| Character Format | 4 Rows by 16 Characters, 8 Rows by 21 Characters | Matrix (Columns x Rows) | STN |
| Number of Characters Per Row | 16, 21 | ||
Environmental
| Fluid Type | STN | Operating Temperature | - 20 C to + 70 C |
Documents & Media
PDF Document
PDF Document
Similar Parts
EA 9780-2USB
ELECTRONIC ASSEMBLY
Display Development Tools Starter/Demoboard Windows USB For DOGM EA 9780-2USB, USB Test Board Kit, LCD USB Test board for EA DOG displays USB Testboard, EA 9780-2USB, Electronic Assembly
$316.3360
Details

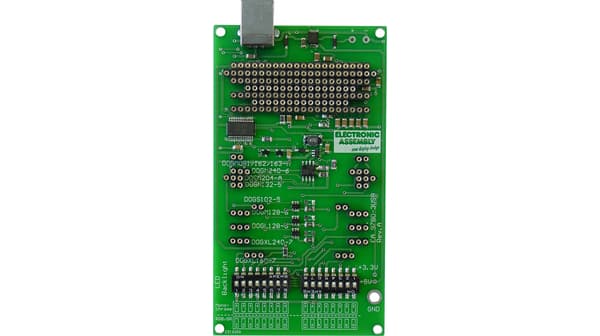

EA 9780-3USB
