570-290-731
| Manufacturer | |
| Description | CONN TERM MALE Rack & Panel Connectors 568/570 MALE CONTACT LARGE GAUGE Contact PIN Crimp ST Cable Mount CONTACT, PIN, 20-16AWG, CRIMP CONTACT, CRIMP, PIN, 20-16AWG Contact; male; 16÷22AWG; 570; tinned; crimped; for cable; 10A; brass Crimp contact, 10 A, 570-290-731, Edac |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | Q2798060C | Product Category | Rack & Panel Connectors |
| Standard Package | 280 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Electrical
| Contact Resistance | 10mΩ | Current Rating (Max) | :10A |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Wire Gauge | 16-22 AWG | Contact Type | Pin |
| Mounting Type | crimped | Pin or Socket | Pin |
| Connector Type | male | Contact Finish | Tin |
| Mounting Style | SMD/SMT | Connector Style | Rack and Panel |
| Contact Material | :Brass / Phosphor Bronze | Package Quantity | 100 |
| Connector - Cable | contact | Termination Style | Crimp |
| 1st Contact Gender | :Pin | Number of Contacts | 80 |
| Contact Termination | Crimp | Wire Gauge or Range - AWG | :20AWG |
| Contact Material - Plating | tinned | ||
Product Info
| Spg | 100 | Series | 570 |
| Product Type | Plug Connectors | Adapter Series | 570 |
| Number of Units | 1 | For Use With/Related Products | :567, 568, 570 Series Waterproof Male Housings |
Environmental
| Ingress Protection | IP67 | Operating Temperature | -40...105°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
565-280-210
EDAC
Crimpers HANDTOOL - CRIMPING TOOL, CRIMP, HAND, EDAC 565/570 Crimp Tool, 565-280-210, Edac EDAC 560 and 572 系列 Hand Crimping Tool 压接工具 , 适用于22 → 28 AWG 线规格
$6702.1344
Details
570-290-741
EDAC Inc
CONN TERM FEMALE Rack & Panel Connectors 568/570 FEMALE CONT SMALL GAUGE Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 20-16AWG, CRIMP CONTACT, CRIMP, SOCKET, 20-16AWG Contact; female; 16÷22AWG; 570; tinned; crimped; for cable; 10A Crimp contact, 10 A, 570-290-741, Edac
$0.7174
Details

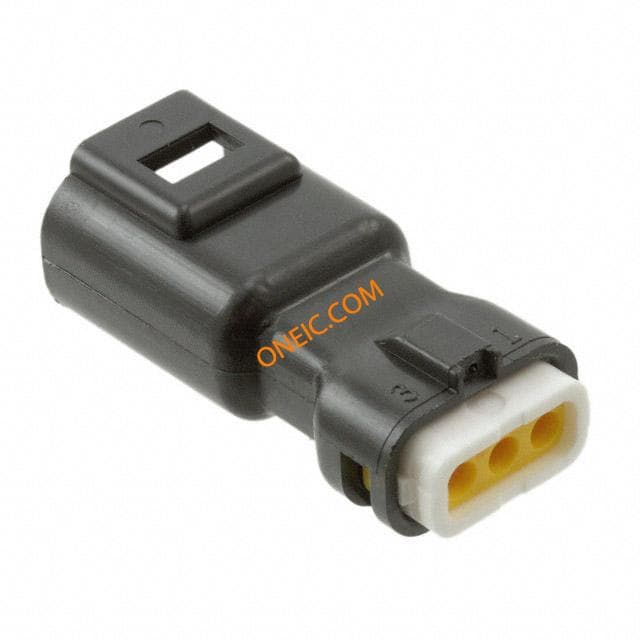

570-003-000-100
