点击放大查看
516-230-556
| Manufacturer | |
| Description | COVER METAL RACK & PANEL 56POS Standard EDAC516 56 way metal cover Rack & Panel Connectors 56P METAL COVER Connector Accessories 56 POS Side Entry Clamp Cover Zinc Die Cast COVER, 56WAY Enclosure: for 516 series; 516; PIN:56; Mat: zinc alloy Metal cover, 516-230-556, Edac EDAC 516 系列 背板外罩, 使用于 516 系列机架及面板连接器 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Rack & Panel Connectors | Standard Package | 25 |
Compliance
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Number of Poles | :56 | ||
Mechanical
| Depth | 39.78mm | Height | 22.23mm |
| Length | 71.17mm | Weight | 0.115 |
| Material | :Metal | Cable Exit | :90° |
| Body Material | zinc alloy | Connector Type | :Backshell |
| Connector Style | Rack and Panel | Material - Body | :Zinc |
| Housing Material | Zinc | Package Quantity | 25 |
| Termination Style | Screw | Color - Connectors | :Grey |
| Number of Contacts | 56 | Number of Positions | 56 |
| Shell Size - Insert | :- | Supplier Device Package | for 516 series |
Product Info
| Spg | 25 | Series | 516 |
| Product Type | Receptacle Housing | Accessory Type | Backshell |
| Adapter Series | 516 | Specifications | Metal, 56 Positions |
| Number of Units | 1 | For Use With/Related Products | 516 Series |
Environmental
| Operating Temperature | -65...125°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

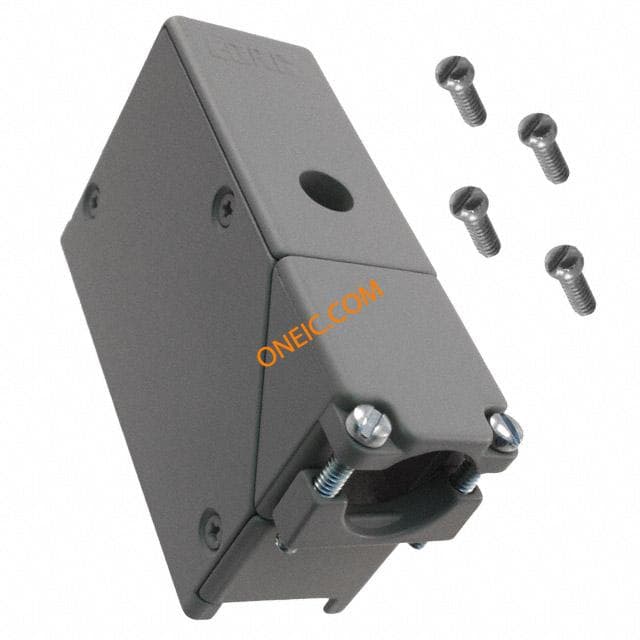

516-056-000-651
EDAC Inc
CONN RCPT 56POS RACK AND PANEL Rack & Panel Connectors 56P RECEPTACLE .150 METAL COVER SIDE ENT
$335.1712
Details

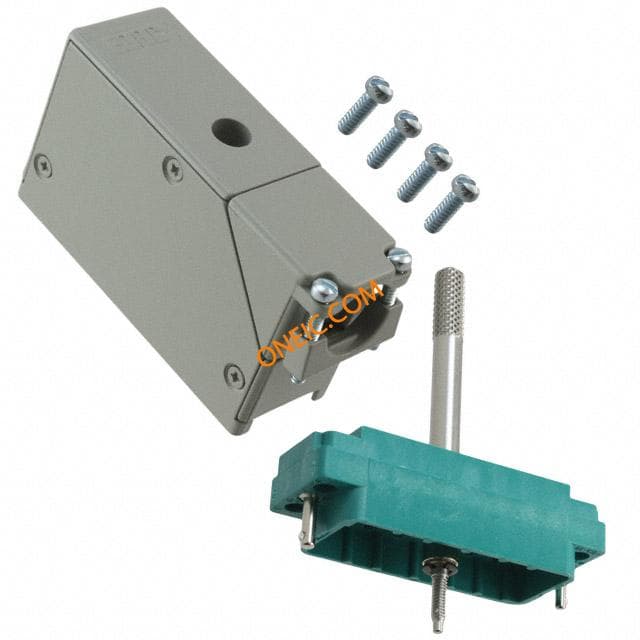

516-056-000-551
