点击放大查看
516-090-000-401
| Manufacturer | |
| Description | CONN RACK & PANEL RCPT 90POS Std EDAC516 cable receptacle, 90 way Rack & Panel Connectors 90P RECEPTACLE WITH SCREW RECEPTACLE, WITH SCREW, 90 WAY Receptacle housing Pitch3.81 mm / 6.6 mm Poles 90 For hermaphroditic contacts / Free hanging/cable mount 516, 516-090-000-401, Edac |
| Category |
Business
| Other Names | 151-1038 | Product Category | Rack & Panel Connectors |
| Standard Package | 25 | ||
Compliance
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Electrical
| Current Rating (Max) | 8.5A | ||
Mechanical
| Color | Gray | Depth | 106.55mm |
| Pitch | 0.150" (3.81mm) | Width | 31.34mm |
| Length | 69.04mm | Weight | 0.061 |
| Packaging | Bulk | Mounting Type | Varies by Contact |
| Connector Type | Housing for Non Gendered Contacts | Contact Finish | Gold |
| Number of Rows | 13 | Connector Style | Rack and Panel |
| Connector Usage | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | Polycarbonate (PC) | Size / Dimension | 69.04 x 31.34 x 106.55mm |
| Termination Style | Screw | 1st Contact Gender | :Socket |
| Number of Contacts | 90 | Contact Termination | :- |
| Number of Positions | 90 | Shell Size - Insert | :- |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | EDAC516 | Features | Jackscrew, Guide Pin |
| Product Type | Receptacle Connectors | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
516-230-590
EDAC Inc
COVER METAL RACK & PANEL 90POS Standard EDAC516 90 way metal cover Rack & Panel Connectors 90P METAL COVER RACK AND PANEL CONNECTOR WITH GREEN OR DIE CAST COVER COLOR COVER, 90WAY Enclosure: for 516 series; 516; PIN:90; Mat: zinc alloy Metal cover, 516-230-590, Edac EDAC 516 系列 背板外罩, 使用于 516 系列机架及面板连接器
516-290-590
EDAC Inc
CONTACT RACK & PANEL CRIMP Std EDAC516 loose crimp terminal,8.5A Rack & Panel Connectors CONTACT CRIMP Contact SKT Crimp ST Cable Mount Loose Piece CRIMP CONTACT Contact; hermaphrodite; 18÷28AWG; 516; nickel plated, gold plated EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-520
EDAC Inc
CONTACT RACK & PANEL SOLDERTAIL Rack & Panel Connectors CONTACT P.C. TAIL Contact SKT Solder ST Thru-Hole Contact; hermaphrodite; 516; nickel plated, gold plated; THT; 8.5A
516-290-500
EDAC Inc
CONTACT RACK & PANEL SOLDER EYE Std EDAC516 solder tag terminal,8.5A Rack & Panel Connectors CONTACT SOLDER EYELET Contact SKT Solder Lug ST Cable Mount CONTACT, SOLDER, PHOSPHOR BRONZE CONTACT, EYELET PK100 Contact; hermaphrodite; 516; nickel plated, gold plated; in bulk EDAC 焊片, 镀金镀镍 磷铜触芯
516-290-541
EDAC Inc
CONTACT RACK & PANEL WIREWRAP Std EDAC516 wire wrap terminal,8.5A Rack & Panel Connectors CONTACT WIREWRAP Contact SKT Wire Wrap ST Cable Mount CONTACT, WIRE WRAP, PHOSPHOR BRONZE CONTACT, MINIWRAP, PK100 EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-591
EDAC Inc
CONN CRIMP CONTACT Rack & Panel Connectors Crimp Contacts CONTACT, PIN, 28-18AWG, CRIMP Crimp contact 18...28 AWG, 516-290-591, Edac
516-290-540
EDAC Inc
CONN CONTACT SHORT WIRE WRAP Rack & Panel Connectors 516 SHORT CONTACT WIRE WRAP
516-290-542
EDAC Inc
CONN CONTACT LONG WIRE WRAP Rack & Panel Connectors METAL COVER SE Contact SKT Wire Wrap ST Cable Mount

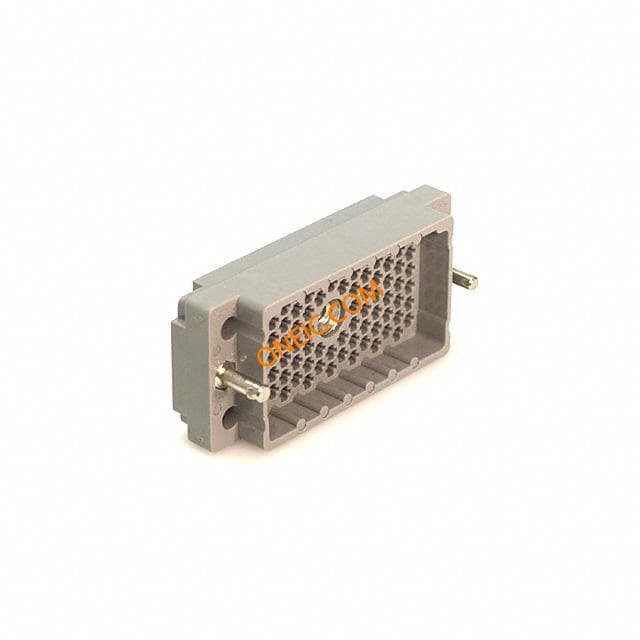

516-090-000-302
