W2S130-BM03-01
| Manufacturer | |
| Description | AC Fan Ball Bearing 230V 46W 50Hz/60Hz 2700RPM/3050RPM 60dB/62dB Flange Mount FAN INTAKE 150 X 55MM 230VAC Fan,172x150mm frame,130mm dia,230V Fans 150x55 230V 250CFM 46W 3050RPM 62dBA BB FAN, 150X55MM, 230VAC Fan;AC;230V;150x55mm;Round;250.1CFM;46W;62dBA;Leadwires ebm-papst W2S130 系列 AC 轴流风扇, 380m³/h, 230 V 交流, 47W, 150 (Dia.) x 55mm |
| Category |
Business
| Lead Time | 112 Days | Subcategory | Blowers and Fans |
| Product Category | Fans | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366910 | Approval Agency | :CSA, UL, VDE |
Electrical
| Noise | 62 dB(A) | Speed | 2700|3050 r/min |
| Frequency | 50|60 Hz | Capacitance | / |
| Range deg/s | :2700rpm | Noise Figure | 60|62 dB |
| Power (Watts) | 46W | Power - Rated | 46 W |
| Voltage Rating | 230 V | Voltage - Supply | 230 V |
| Power Supply Type | :Wire Leaded | Current Rating (Max) | 0.270A |
| Power - Average Forward | :47W | ||
Mechanical
| RPM | 3050 RPM | Size | 5.91x2.17(150x55)In.(mm) |
| Depth | 150 mm | Height | 55 mm |
| Weight | 2.5 lbs (1.1kg) | Air Flow | 250.1 CFM (7.08m³/min) |
| Fan Type | Tubeaxial | Material | :Steel |
| Rotation | CCW | Flow (CFM) | :7m³/min |
| Flow (SCFM) | :250.1cu.ft/min | Termination | Leads |
| Bearing Type | Ball | Outer Diameter | :150mm |
| Housing Material | Die-Cast Aluminum | Length - Overall | 172 mm |
| Material - Blade | Steel | Material - Frame | Aluminum |
| Primary Material | Fans | Size / Dimension | Round - 150mm Dia x 55mm W |
| Termination Style | Wire Leads | Diameter - Outside | :150mm |
| Fan Accessory Type | 5.91x2.17(150x55)In.(mm) | Length - Lead Wire | :330mm |
| Dimensions - Overall | 5.91x2.17In. | Mounting Panel Thickness | :162mm |
| Material - Housing & Prism | :Aluminium | ||
Product Info
| Type | Round | Series | W2S130 |
| Function | AC | Direction | IntakeoverStruts |
| Switch Type | AC | Manufacturer | W2S130Series |
| Product Type | W2S130-BM03-01 | Configuration | Round |
| Manufacturing Country | 德国 | ||
Environmental
| Rated Life | 详见产品文档说明 | Temperature | -20------------+72℃ |
| Air Flow - High | 380/425 m3/h | Operating Pressure | 128/120Pa |
| Operating Temperature | -40 ~ 176°F (-40 ~ 80°C) | Thermal Resistance @ Natural | 250.1CFM |
| Operating Temperature - Junction | 70°C | ||
Documents & Media
Similar Parts
LZ24
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories METAL FINGER GUARD FINGER GUARD METAL F/150MM FANS Welded Finger Guard; Nickel Chrome-Plated Steel Wire; .072" Dia;For Series 6000 Fan Accessories METAL FINGER GUARD WeldedFingerGuard,NickelChrome-PlatedSteelWire,.072"Dia,ForSeries6000 150mm风扇 金属 手指防护罩, 154.43 (Dia)mm
50950-2-4039
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories FINGER GUARD FINGER GRD W2E142,W2G130, W2S130 Fan Accessories FINGER GUARD MetalFingerGuard
LZ36
ebm-papst
Thrml Mgmt Access Finger Guard Steel Wire Fan Cords & Accessories STEEL GRD F. 70006400 FINGER GUARD METAL F/7000 SERIES Fan Accessories STEEL GRD F. 70006400 LZ36 GUARD, METAL, 150MM 150 x 172mm风扇 钢 手指防护罩, 150.5 x 162mm

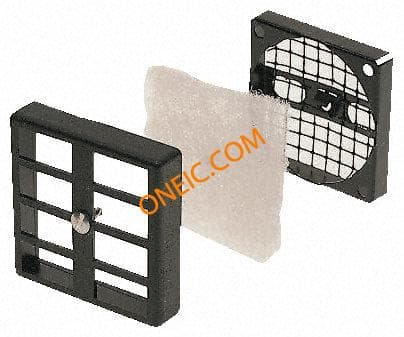

PMFA160
