8214J/2H4
| Manufacturer | |
| Description | DC Fan Ball Bearing 24V 38W 131CFM 71dB Flange Mount FAN TUBEAXIAL 80X38MM 24VDC S-Force DC axial fan, 80mm 222cu.m/h 24V Fans 80x38 24V 131CFM 71dB 14KRPM BB Tach FAN, AXIAL, 80X80X38MM, 24VDC Fan;DC;24V;80x80x38mm;Sq;131CFM;38W;71dBA;Leadwires ebm-papst 8200J 系列 直流 轴流风扇, 222m³/h, 24 V 直流, 38W, 80 x 80 x 38mm |
| Category |
Business
| Product | Fans | Other Names | 381-2314 |
| Product Category | Fans | Standard Package | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84145920 |
| Rad Hardened | No | ||
Electrical
| Noise | 71 dB(A) | Speed | Clockwise |
| Frequency | Not Required Hz | Input Range | 12V to 27.6V |
| Noise Figure | 71 dB | Power (Watts) | 38W |
| Power - Rated | 38 W | Voltage Range | 12 ~ 27.6VDC |
| Voltage Rating | 24VDC | Voltage - Supply | 24 V |
| Power Supply Type | :Wire Leaded | Voltage - Input (Min) | :12VDC |
| Power - Average Forward | :38W | Voltage - Continuous Operating (Max) (MCOV) | :27.6VDC |
Mechanical
| Size | 3.2x1.5(80x38)In.(mm) | Depth | 80 mm |
| Width | :80mm | Height | 38 mm |
| Weight | 0.44 lb (199.58g) | Air Flow | 131.0 CFM (3.71m³/min) |
| Diameter | Not Required mm | Fan Type | Tubeaxial |
| Material | Plastic | Rotation | CW |
| Flow (CFM) | :3.67m³/min | Flow (SCFM) | :131cu.ft/min |
| Termination | Leads | Bearing Type | Ball |
| Height (Max) | :80mm | Mounting Type | Flange Mount |
| Mounting Style | Flange | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 80 mm | Material - Blade | Polyamide (PA), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Primary Material | Fans |
| Size / Dimension | Square - 80mm L x 80mm H x 38mm W | Termination Style | Wire Leads |
| Fan Accessory Type | 3.2x1.5(80x38)In.(mm) | Length - Lead Wire | :310mm |
| Dimensions - Overall | 3.2x3.2x1.5In. | ||
Product Info
| Type | DC Fan | Series | 8200J |
| Features | Speed Sensor (Tach) | Function | DC |
| Direction | ExhaustoverStruts | Switch Type | DC |
| Manufacturer | 8200JSeries | Configuration | Square |
Environmental
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) | Thermal Resistance @ Natural | 131CFM |
| Operating Temperature - Junction | 70C | ||
Documents & Media
Similar Parts
LZ22N
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories METAL FINGER GUARD 80mm 5 RINGS FAN GUARD 80MM METAL Finger Guard 80mm Steel Fan Accessories METAL FINGER GUARD 80mm 5 RINGS Thrml Mgmt Access Metal Finger Guard FINGER GUARD, FOR PAPST SERIES 8000 FingerGuard,Welded,NickelChrome-PlatedSteelWire,.062in(1.6mm)diameter ebm-papst 80mm风扇 钢 手指防护罩
LZ32P
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories Plastic Finger Guard Fits 8000 FINGER GUARD PLASTIC F/8000 SER Fan Accessories Plastic Finger Guard Fits 8000 Guard,Plasticfor8000SeriesAxialFan 80mm风扇 塑料 手指防护罩, 88 x 88mm
LZ32-4
ebm-papst
Thrml Mgmt Access Finger Guard 80mm Steel Wire Fan Cords & Accessories FINGER GD 8000 FAN GUARD 80MM METAL Fan Accessories FINGER GD 8000 FingerGuard;ThermalMgnt;80mm;SteelWire Protective grid Metal 80 x 80 mm, LZ32-4, EBM-Papst 80mm风扇 金属，钢 手指防护罩, 78.2 x 78.2mm
LZ32-2
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories FINGER GRD 80MM 4.5HOLE FAN GUARD 80MM PLASTIC Fan Accessories FINGER GRD 80MM 4.5HOLE
LZ32-3
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories FINGER GUARD 80MM W/BARB FAN GUARD 80MM PLASTIC Finger Guard Fan Accessories FINGER GUARD 80MM W/BARB FingerGuard 80mm风扇 塑料 手指防护罩, 80 x 80mm

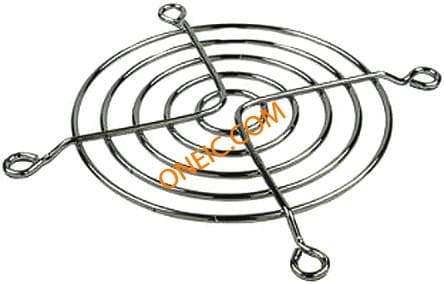

LZ22K
