8112K
| Manufacturer | |
| Description | Tubeaxial, 80 x 80 x 38 mm, DC, CFM=25-49, V=12 FAN 80 X 38MM 12VDC Fan;DC;12V;80x80x38mm;Sq;35CFM;3W;39dBA;Leadwires |
| Category |
Business
| Lead Time | 112 Days | Other Names | 381-1100 |
| Subcategory | Not Specified | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Noise | 39 dB(A) | Power - Max | 3W |
| Power (Watts) | 3.00W | Power - Rated | 3W |
| Voltage Range | 8 ~ 16VDC | Voltage Rating | 12VDC |
Mechanical
| RPM | 3450 RPM | Size | 3.2x1.5(80x38)In.(mm) |
| Weight | 0.937 lb (425.02g) | Air Flow | 35.0 CFM (0.991m³/min) |
| Fan Type | Tubeaxial | Material | Metal |
| Rotation | CW | Termination | 2 Wire Leads |
| Bearing Type | Ball | Material - Blade | Metal |
| Material - Frame | Metal | Primary Material | Fans |
| Size / Dimension | Square - 80mm L x 80mm H x 38mm W | Fan Accessory Type | 3.2x1.5(80x38)In.(mm) |
| Dimensions - Overall | 3.2x3.2x1.5In. | ||
Product Info
| Type | Square | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | 8100Series |
| Configuration | Square | ||
Environmental
| Rated Life | 85000 hrs @ 40°C | Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Thermal Resistance @ Natural | 35CFM | ||
Documents & Media
Similar Parts

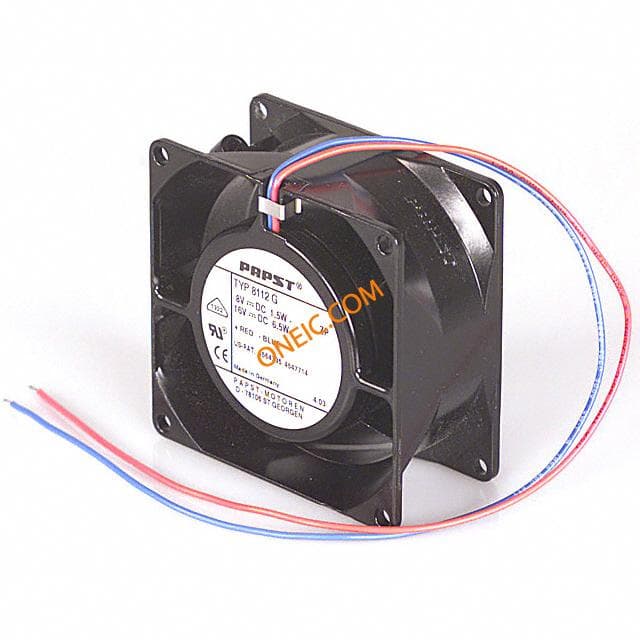

8112G
