6212NM
| Manufacturer | |
| Description | DC Fan Ball Bearing 12V 12W 2850RPM 206CFM 50dB Flange Mount FAN 171.5 X 50.8MM 12VDC DC axial fan 172mm dia 12V 350m3/h Blowers 172mm 12VDC 206CFM FAN, 172MM, 12VDC Fan;DC;12V;172x51mm;Round;206CFM;12W;50dBA;2850RPM;Terminals Axial fan DC ø 172 x 51 mm 350 m³/h 12 VDC 12 W, 6212NM, EBM-Papst ebm-papst 6200N 系列 直流 轴流风扇, 350m³/h, 12 V 直流, 12W, 172 (Dia.) x 51mm |
| Category |
Business
| Lead Time | 112 Days | Other Names | 381-1041 |
| Subcategory | Blowers and Fans | Product Category | Blowers |
| Standard Package | 30 | ||
Compliance
| RoHS | Vendor undefined / Vendor undefined | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 84145920 | Approval Agency | :CSA, UL, VDE |
Electrical
| Noise | 50 dB(A) | Speed | 2850 RPM |
| Power (Watts) | 12.0W | Power - Rated | 12 W |
| Voltage Range | 8 ~ 15VDC | Voltage Rating | 12VDC |
| Voltage - Supply | 12 V | Power Supply Type | :Terminals |
| Power - Average Forward | :12W | ||
Mechanical
| RPM | 2850 RPM | Size | 6.8x2(172x51)In.(mm) |
| Depth | :51mm | Weight | 1.8 lbs (816.5g) |
| Air Flow | 206.0 CFM (5.83m³/min) | Fan Type | Tubeaxial |
| Material | Aluminum | Rotation | CW |
| Flow (CFM) | :5.77m³/min | Flow (SCFM) | :206cu.ft/min |
| Termination | 2 Terminals | Bearing Type | Ball |
| Outer Diameter | :172mm | Housing Material | Polybutylene Terephthalate |
| Material - Blade | Polyamide (PA), Fiberglass Reinforced | Material - Frame | Metal |
| Primary Material | Fans | Size / Dimension | Round - 171.5mm Dia x 50.8mm W |
| Termination Style | Wire Leads | Diameter - Outside | :172mm |
| Fan Accessory Type | 6.8x2(172x51)In.(mm) | Dimensions - Overall | 6.8x2In. |
Product Info
| Type | :Standard, 172mm | Series | 6200N |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | 6212Series |
| Configuration | Round | ||
Environmental
| Rated Life | 80000 hrs @ 40°C | Operating Temperature | -4 ~ 162°F (-20 ~ 72°C) |
| Thermal Resistance @ Natural | 206CFM | Operating Temperature - Junction | 72°C |
Documents & Media
Similar Parts
LZ215
ebm-papst
Thrml Mgmt Access Steel Sheet Fan Cords & Accessories THRML MGMT ACCESS STEEL SHEET MOUNTING SCREW CLIP Fan Accessories THRML MGMT ACCESS STEEL SHEET
LZ38
ebm-papst
Thrml Mgmt Access Finger Guard Steel Wire Fan Cords & Accessories FINGER GRD STEEL WIRE FINGER GUARD METAL F/6000 SERIES Fan Accessories FINGER GRD STEEL WIRE Thrml Mgmt Access Steel Wire Finger Guard Fan;Accessory;FingerGuardfor6000Series 172 x 51mm风扇 金属，钢 手指防护罩
LZ26
ebm-papst
Thrml Mgmt Access Finger Guard Steel Wire Fan Cords & Accessories FINGER GUARD METAL F/172MM FANS FINGER GUARD METAL F/172MM FANS Fan Accessories FINGER GUARD METAL F/172MM FANS LZ26 FingerGuard,172mm,6Ring

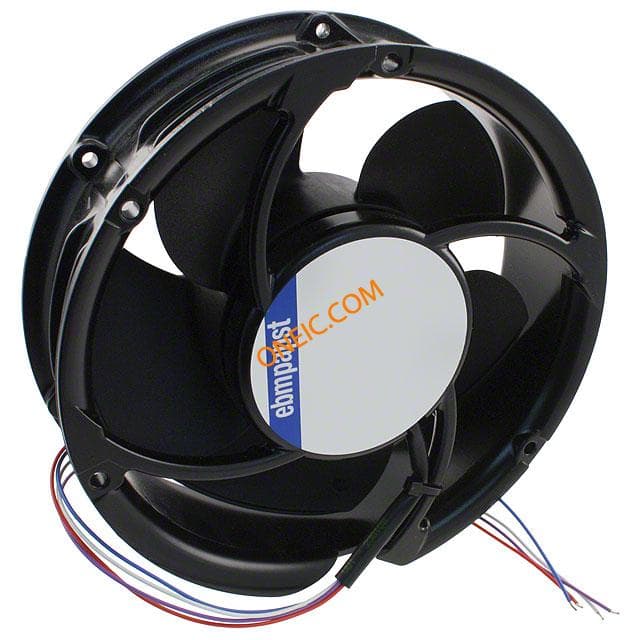

6312/2TDHP
ebm-papst
DC Fan Ball Bearing 12V 40W 5500RPM 353.1CFM 60dB Flange Mount FAN TUBEAXIAL 172X50.8MM 12VDC S-Force DC fan PWM, 172mm 600cu.m/h 12V Fans 172x51 12V 353.1CFM 40W 5500RPM 60dBA BB FAN, AXIAL, 172X51MM, 12VDC Fan;DC;12V;172x51mm;Round;353.1CFM;41W;64dBA;6000RPM;Terminals ebm-papst 6300 系列 直流 轴流风扇, 600m³/h, 12 V 直流, 40W, 172 (Dia.) x 51mm

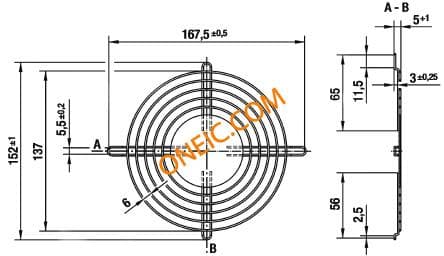

04013-2-4039
