4650N
| Manufacturer | |
| Description | AC Fan Sintec-Sleeve Bearing 230V 19W 50Hz 2650RPM 94.2CFM 46dB Flange Mount FAN INTAKE 119 X 38MM 230VAC AC Axial Fan, 119mm 230V 160m3/H Blowers 119x38 230V 94.2CFM 19W 2650RPM 46dBA SB FAN, 119X119X38MM, 230VAC Fan;AC;230V;120x120x38mm;Sq;94.2CFM;19W;46dBA;2650RPM;Terminals ebm-papst 4000N 系列 AC 轴流风扇, 160m³/h, 230 V 交流, 19W, 119 x 119 x 38mm |
| Category |
Business
| Lead Time | 83 Days | Other Names | 381-1093 |
| Subcategory | Blowers and Fans | Product Category | Blowers |
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ULListed,CSACertified,VDEApproved |
| Tariff No | 84145920 | Approval Agency | :CE, CSA, UL, VDE |
Electrical
| Noise | 46 dB(A) | Speed | Clockwise |
| Frequency | :50Hz | Capacitance | / |
| Range deg/s | :2650rpm | Power (Watts) | 19.0W |
| Power - Rated | 19 W | Voltage Rating | 230VAC |
| Voltage - Supply | 230 V | Power Supply Type | :Terminals |
| Power - Average Forward | :19W | ||
Mechanical
| RPM | 2650 RPM | Size | 4.7x1.5(120x38)In.(mm) |
| Depth | :38mm | Width | :119mm |
| Height | 38 | Weight | 1.2 lbs (544.3g) |
| Air Flow | 94.2 CFM (2.66m³/min) | Fan Type | Tubeaxial |
| Material | Metal | Rotation | CW |
| Flow (CFM) | :160m³/h | Flow (SCFM) | :94.17cu.ft/min |
| Termination | Terminals | Bearing Type | Sintec-Sleeve |
| Height (Max) | :119mm | Mounting Type | Flange Mount |
| Housing Material | Metal | Length - Overall | 119 |
| Material - Blade | Metal | Material - Frame | Metal |
| Primary Material | Fans | Size / Dimension | Square - 119mm L x 119mm H x 38mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 4.7x1.5(120x38)In.(mm) |
| Dimensions - Overall | 4.7x4.7x1.5In. | ||
Product Info
| Type | Square | Series | 4000N |
| Function | AC | Direction | IntakeoverStruts |
| Switch Type | AC | Manufacturer | 4600XSeries |
| Product Type | 4650N | Configuration | Square |
| Manufacturing Country | 德国 | ||
Environmental
| Rated Life | 37500 hrs @ 40°C | Temperature | -10------------+55℃ |
| Air Flow - High | 160 m3/h | Operating Pressure | 80Pa |
| Operating Temperature | 14 ~ 131°F (-10 ~ 55°C) | Thermal Resistance @ Natural | 94.2CFM |
| Operating Temperature - Junction | :37500h | ||
Documents & Media
Similar Parts
4850N
ebm-papst
AC Fan Sintec Bearing 230V 10W 50Hz/60Hz 1800RPM 58.9CFM 32dB Flange Mount FAN TUBEAXIAL 119X38MM 230VAC Sleeve bearing axial fan,120mm 230Vac Fans Size=119x119x38 mm CFM=58.9 VAC=230 FAN, 119MM, 230VACC, 100M3/H, 32DBA ACTUBEAXIALFAN ebm-papst 4000N 系列 AC 轴流风扇, 100m³/h, 230 V 交流, 10W, 119 x 119 x 38mm
LZ30-4
ebm-papst
Thrml Mgmt Access Finger Guard 119mm Steel Wire Fan Cords & Accessories Finger Guard Steel FAN GUARD 119MM METAL Fan Accessories Finger Guard Steel Guard,Metal,For4000/9000SeriesAxialFans 119mm风扇 金属，钢 手指防护罩, 119 x 119mm
LZ40/60
ebm-papst
Fan Cords & Accessories KIT SCREEN 4000, 9000 SER KIT SCREEN FOR 4000, 9000 SER Fan Accessories KIT SCREEN 4000, 9000 SER
LZ60
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Fan Filter FILTER 119MM WIRE MESH METAL Aluminium Fan Mounted Fan Filter for 119mm Fan Fan Accessories Fan Filter FILTER, METAL MESH, FOR LZ40N Fan,Filterfor4000&9000SeriesEBMFans ebm-papst 铝制 扇形过滤器, 用于119mm风扇
LZ40N
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Screen Kit Fits 4000/9000 FRAME PLASTIC FOR 4000, 9000 SER Glass Fibre Reinforced Polymer Fan Mounted Finger Guard Fan Accessories Screen Kit Fits 4000/9000 FILTER, DUST, METAL MESH Fan,Screen,BlackFiberglassFramew/InsertedAlumMesh,Usew/4000&9000Series ebm-papst 玻璃纤维强化聚酯制 指形护罩
LZ30-6
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories GUARD FINGR 4100N SERIES LZ30-6 FAN GUARD 119MM PLASTIC Fan Accessories GUARD FINGR 4100N SERIES LZ30-6 FiberglassReinforcedPlastic(PPO)FingerGuard 119mm风扇 塑料 手指防护罩, 119 x 119mm
LZ30-5
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories PLASTIC FINGER GUARD SERIES 4000/9000 FAN GUARD 119MM PLASTIC Fan Accessories PLASTIC FINGER GUARD SERIES 4000/9000

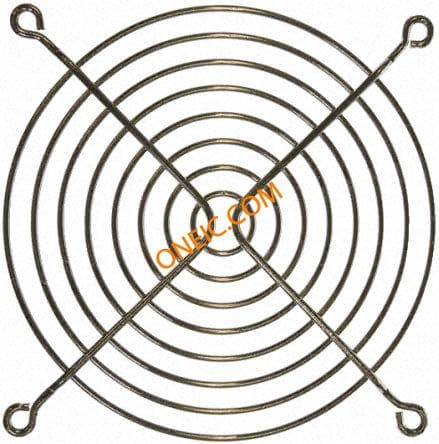

LZ30K
ebm-papst
Thrml Mgmt Access Finger Guard 120mm Steel Finger Guard 120mm Steel GUARD, FINGER, 120MM METALFINGERGUARD,119MM 120mm风扇 镀钢 手指防护罩, 104.8 x 104.8mm
LZ30P
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories Plastic Finger Guard Fits 4000/9000 FINGER GUARD PLAST 4000,9000 SER Fan Accessories Plastic Finger Guard Fits 4000/9000 Thrml Mgmt Access Finger Guard Plastic FINGER GUARD FAN 119MM SQ FiberglassReinforcedPlastic(PPO),ForSeries2500S,4000,andModel5500S ebm-papst 黑色 119mm风扇 塑料 手指防护罩 , 127 x 127mm
4890N
ebm-papst
AC Fan Sintec-Sleeve Bearing 230V 11W 50Hz 1550RPM 47.1CFM 25dB Flange Mount FAN TUBEAXIAL 119X38MM 230VAC AC sleeve fan, 119mm 80cu.m/h 230V Fans Size=119x119x38 mm CFM=47.1 VAC=230 FAN, 119MM, 230VAC, 80M3/H, 25DBA ACTUBEAXIALFAN
LZ210
ebm-papst
Thrml Mgmt Access Screw Clip Steel Fan Cords & Accessories Clip Nut 6-32/M3.5 Self-tapping STEEL MOUNTING SCREW CLIP Threaded Clip For 119 127 & 135mm Fans Fan Accessories Clip Nut 6-32/M3.5 Self-tapping FIXING CLIP, PK4 FAN CLIP Accessory;SteelScrewCliptoMountFanswithThreadedPin6-32UNC/3.5DIN7970 安装螺丝夹 风扇安装硬件, 使用于4000 / 5100 / 5200 / 5600 / 5900 / 7000 和 9000 风扇系列

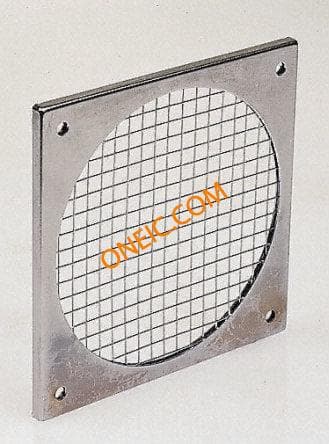

PRF120
ebm-papst
Steel Fan Mounted Fan Filter for 119mm Fan FILTER, EMC SCREENED, 119MM MetalEMCscreenfilter,120Hx120Wmm Shielded Fan Grating 119 x 119 mm, PRF120, EBM-Papst ebm-papst 钢制 扇形过滤器, 用于119mm风扇

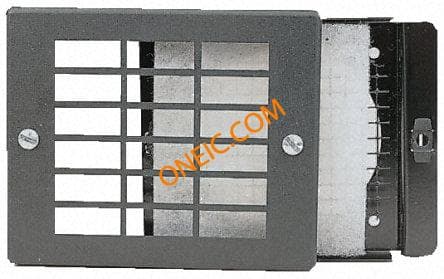

FP120
ebm-papst
Synthetic Fibre Fan Mounted Fan Filter for 119mm Fan FILTER, 119MM, PK5 FILTERPACKPMFA120(5) ebm-papst 合成纤维制 风扇安装过滤器（仅限备用垫） 扇形过滤器, 用于119mm风扇

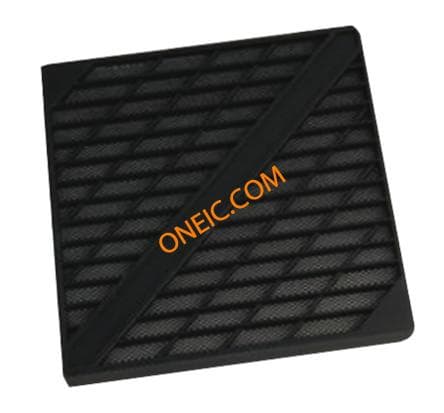

PMFA120T
