4184NXH
| Manufacturer | |
| Description | DC Fan Ball Bearing 24V 11W 4400RPM 139.49CFM 57dB Flange Mount FAN TUBEAXIAL 119X38MM 24VDC DC AXIAL FAN, 119MM SQ Fan;DC;24V;120x120x38mm;Sq;139.5CFM;11W;57dBA;Terminals ebm-papst 4100N 系列 直流 轴流风扇, 237m³/h, 24 V, 11W, 119 x 119 x 38mm |
| Category |
Business
| Lead Time | 56 Days | Subcategory | Blowers and Fans |
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84145920 |
| Rad Hardened | No | ||
Electrical
| Noise | 57 dB(A) | Speed | Clockwise |
| Frequency | Not Required | Input Range | 12V to 25V |
| Noise Figure | 57 dB | Power (Watts) | 11.0W |
| Power - Rated | 11 W | Voltage Range | 12 ~ 28VDC |
| Voltage Rating | 24VDC | Voltage - Supply | :24VDC |
| Power Supply Type | :Terminals | ||
Mechanical
| RPM | 4400 RPM | Size | 4.7x1.5(120x38)In.(mm) |
| Depth | 119 mm | Width | :119mm |
| Height | 38 mm | Weight | 0.86 lb (390.09g) |
| Air Flow | 139.5 CFM (3.95m³/min) | Diameter | Not Required mm |
| Fan Type | Tubeaxial | Material | Metal |
| Flow (CFM) | :237m³/h | Flow (SCFM) | :139.5cu.ft/min |
| Termination | Terminals | Bearing Type | Ball |
| Height (Max) | :119mm | Mounting Type | Flange Mount |
| Mounting Style | Flange | Housing Material | Aluminum |
| Length - Overall | 119 mm | Material - Blade | Polyamide (PA), Fiberglass Reinforced |
| Material - Frame | Aluminum | Primary Material | Fans |
| Size / Dimension | Square - 119mm L x 119mm H x 38mm W | Diameter - Outside | :119mm |
| Fan Accessory Type | 4.7x1.5(120x38)In.(mm) | Dimensions - Overall | 4.7x4.7x1.5In. |
Product Info
| Type | DC Fan | Series | :4100N |
| DELETED | Compliant | Function | :DC |
| Direction | IntakeoverStruts | Switch Type | DC |
| Manufacturer | 4100NSeries | Configuration | Square |
Environmental
| Rated Life | 70000 hrs @ 40°C | Operating Temperature | -22 ~ 158°F (-30 ~ 70°C) |
| Thermal Resistance @ Natural | 139.5CFM | Operating Temperature - Junction | 55C |
Documents & Media
Similar Parts

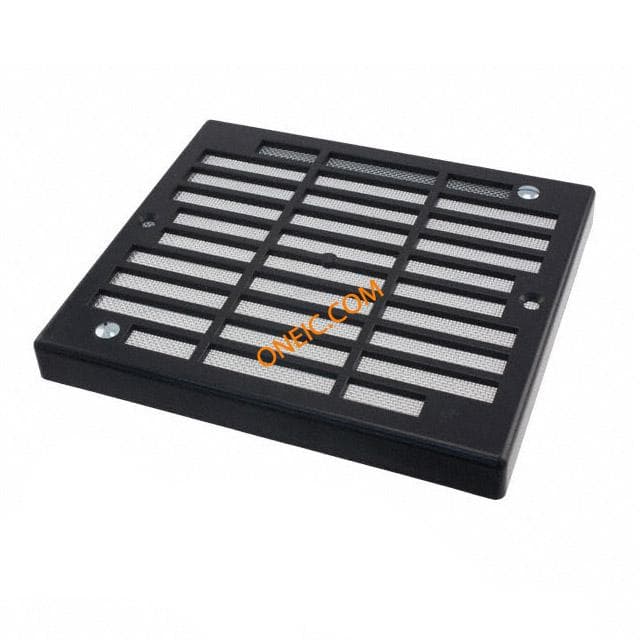

10016-1-5170
ebm-papst
Thrml Mgmt Access Grill Guard 119mm GRILL GRD F/119MM FAN Fan Accessories GRILL GRD
LZ30-4
ebm-papst
Thrml Mgmt Access Finger Guard 119mm Steel Wire Fan Cords & Accessories Finger Guard Steel FAN GUARD 119MM METAL Fan Accessories Finger Guard Steel Guard,Metal,For4000/9000SeriesAxialFans 119mm风扇 金属，钢 手指防护罩, 119 x 119mm
LZ40/60
ebm-papst
Fan Cords & Accessories KIT SCREEN 4000, 9000 SER KIT SCREEN FOR 4000, 9000 SER Fan Accessories KIT SCREEN 4000, 9000 SER
LZ60
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Fan Filter FILTER 119MM WIRE MESH METAL Aluminium Fan Mounted Fan Filter for 119mm Fan Fan Accessories Fan Filter FILTER, METAL MESH, FOR LZ40N Fan,Filterfor4000&9000SeriesEBMFans ebm-papst 铝制 扇形过滤器, 用于119mm风扇
LZ40N
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Screen Kit Fits 4000/9000 FRAME PLASTIC FOR 4000, 9000 SER Glass Fibre Reinforced Polymer Fan Mounted Finger Guard Fan Accessories Screen Kit Fits 4000/9000 FILTER, DUST, METAL MESH Fan,Screen,BlackFiberglassFramew/InsertedAlumMesh,Usew/4000&9000Series ebm-papst 玻璃纤维强化聚酯制 指形护罩
LZ30-6
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories GUARD FINGR 4100N SERIES LZ30-6 FAN GUARD 119MM PLASTIC Fan Accessories GUARD FINGR 4100N SERIES LZ30-6 FiberglassReinforcedPlastic(PPO)FingerGuard 119mm风扇 塑料 手指防护罩, 119 x 119mm
LZ30-5
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories PLASTIC FINGER GUARD SERIES 4000/9000 FAN GUARD 119MM PLASTIC Fan Accessories PLASTIC FINGER GUARD SERIES 4000/9000
LZ30P
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories Plastic Finger Guard Fits 4000/9000 FINGER GUARD PLAST 4000,9000 SER Fan Accessories Plastic Finger Guard Fits 4000/9000 Thrml Mgmt Access Finger Guard Plastic FINGER GUARD FAN 119MM SQ FiberglassReinforcedPlastic(PPO),ForSeries2500S,4000,andModel5500S ebm-papst 黑色 119mm风扇 塑料 手指防护罩 , 127 x 127mm
LZ210
ebm-papst
Thrml Mgmt Access Screw Clip Steel Fan Cords & Accessories Clip Nut 6-32/M3.5 Self-tapping STEEL MOUNTING SCREW CLIP Threaded Clip For 119 127 & 135mm Fans Fan Accessories Clip Nut 6-32/M3.5 Self-tapping FIXING CLIP, PK4 FAN CLIP Accessory;SteelScrewCliptoMountFanswithThreadedPin6-32UNC/3.5DIN7970 安装螺丝夹 风扇安装硬件, 使用于4000 / 5100 / 5200 / 5600 / 5900 / 7000 和 9000 风扇系列

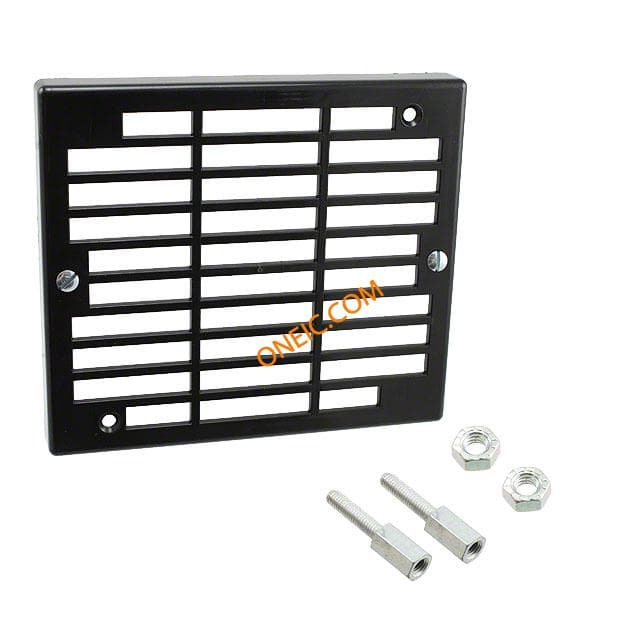

B10017-1-5170
EBM-Papst Industries Inc
GRILL GRD & FLTR F/119MM FAN

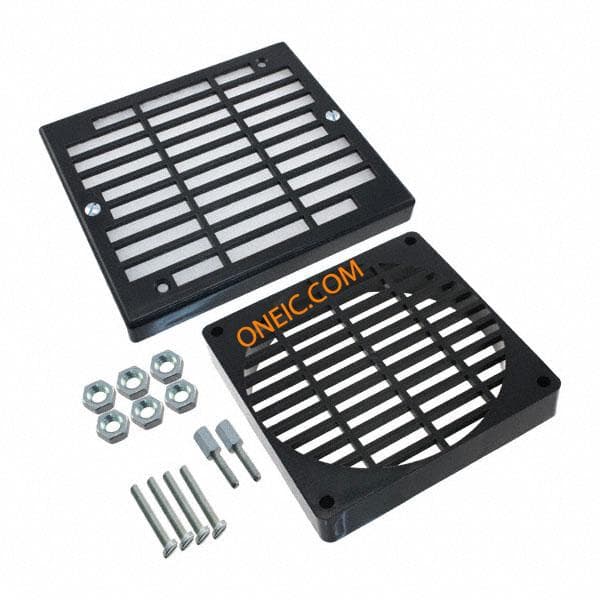

B10018-1-5170
