点击放大查看

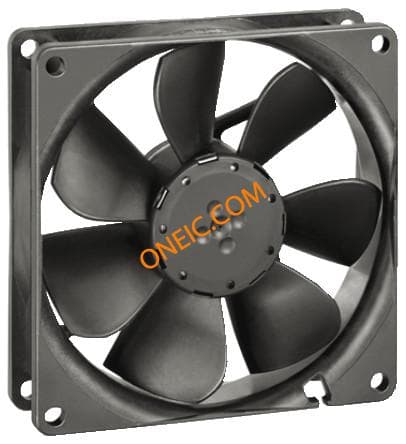

3412NGL
| Manufacturer | |
| Description | DC Fan Sintec Bearing 12V 1.2W 36CFM 23dB Flange Mount FAN TUBEAXIAL 92X25.4MM 12VDC FAN, 92MM, 12VDC |
| Category |
Business
| Lead Time | 112 Days | Subcategory | Blowers and Fans |
| Standard Package | 25 | ||
Compliance
| RoHS | Vendor undefined / Vendor undefined | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 84145920 | Approval Agency | :UL |
Electrical
| Noise | 23 dB(A) | Power (Watts) | 1.20W |
| Voltage Range | 8 ~ 15VDC | Voltage Rating | 12VDC |
| Voltage - Supply | :12VDC | Power Supply Type | :Wire Leaded |
| Voltage - Input (Min) | :8V | Power - Average Forward | :1.2W |
| Voltage - Continuous Operating (Max) (MCOV) | :15V | ||
Mechanical
| RPM | 1950 RPM | Depth | :25mm |
| Width | :92mm | Weight | 0.31 lb (140.61g) |
| Air Flow | 36.0 CFM (1.02m³/min) | Fan Type | Tubeaxial |
| Flow (CFM) | :61m³/h | Flow (SCFM) | :35.9cu.ft/min |
| Termination | 2 Wire Leads | Bearing Type | Sintec |
| Height (Max) | :92mm | Material - Blade | Polyamide (PA), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Size / Dimension | Square - 92mm L x 92mm H x 25.4mm W |
| Length - Lead Wire | :310mm | Panel Cutout Shape | :89mm |
| Mounting Hole Diameter | :4.5mm | Mounting Panel Thickness | :82.5mm |
Product Info
| Type | :Super Low Noise,92mm | Series | :3400N |
| Function | :DC | ||
Environmental
| Rated Life | 80000 hrs @ 40°C | Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
