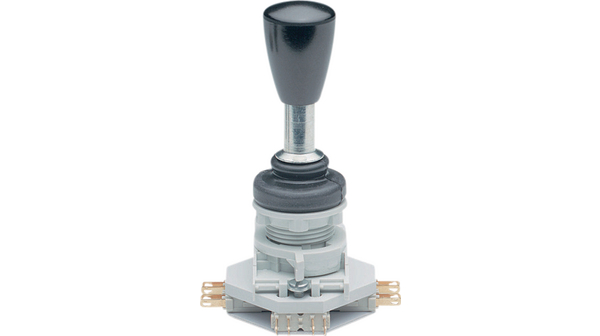

44-800.2
| Manufacturer | |
| Description | Switch,joystick;2pos;Mom;Eachposhas1DPST(1NO1NC)switch;5A250VAC Joystick, 2 switch 5 A @ 250 VAC / 5 A @ 75 VDC Blade Terminal 2.8 x 0.5 mm 65 x 65 x 102 mm, 44-800.2, EAO |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Operation | Momentary | Voltage Rating | 250VAC |
| Switching Capacity | 5 A@ 250 VAC | Current Rating (Max) | 5Amps |
| Voltage - Protection Level (VP) (2416) | IP 65 | ||
Mechanical
| Size | 65 x 65 x 102 mm | Termination | Solder/QCTabs |
| Contact Form | 2NC,2NO | Mounting Style | Panel |
| Actuator Length | 63mm | Termination Style | Blade Terminal 2.8 x 0.5 mm |
| Number of Positions | 2 | Mounting Hole Diameter | 22.5mm |
Product Info
| Type | Joystick | Description | 2 switch |
| Pattern Type | ø 22.3 mm | Number of Axes | 2DPST |
Environmental
| Ingress Protection | IP65 | Operating Temperature | -25...+70 °C |
