点击放大查看

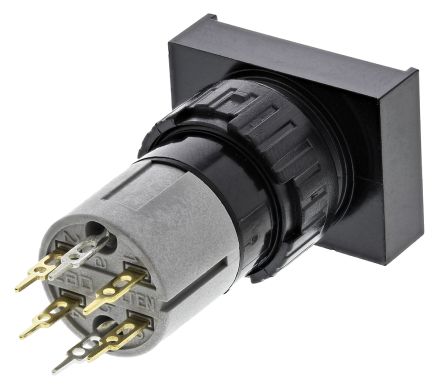

31-461.036
| Manufacturer | |
| Description | Push button switch,maintained,2 NO Switch; Pushbutton; 2 N.O. Contacts; Rectangular; Maintained SWITCH, 2NO, LATCHING Switch,Pushbutton,2N.O.Contacts,Rectangular,Maintained EAO IP40 2 常开 PCB 维护 照明 按钮开关, 100 mA @ 42 V |
| Category |
Business
| Lead Time | 60 Days | Subcategory | Not Specified |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85365019 | Approval Agency | :CSA, LLOYDS, NEMKO, OVE, SEV, UL, VDE |
Electrical
| Operation | Maintained | Voltage Rating | 42VAC |
| Number of Poles | 2 | Current - Cathode | :10µA |
| Contact Resistance | :50mohm | Current Rating (Max) | 100mA |
| Current - Max/Contact | :100mA | Switch Function/Rating | Maintained |
| Voltage - Supply (Min) | :100µV | Contact Rating (Current) | 100 mA @ 42 V ac/dc |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :42V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :42V | ||
Mechanical
| Depth | :18mm | Width | :24mm |
| Length | :18mm | Weight | 0.012 |
| Termination | Solder/QCTabs | Contact Form | 2NO |
| Actuator Type | Button | Mounting Type | PCB |
| Terminal Type | Through Hole | Mounting Style | Panel |
| Contact Material | Gold Plated | Depth Behind Panel | :36mm |
| Panel Cutout Shape | 16mm | Actuator Style/Size | :Rectangular |
| Mounting Hole Diameter | 16mm | Switch Actuation Level | :Rectangular |
| Contact Layout, Typical | 2 NO | Panel Cutout Dimensions | 16mm |
Product Info
| Type | Pushbutton | Series | :31 |
| Features | Illuminated | CAD Drawing | 3D CAD Model |
| Illumination | Yes | ||
Environmental
| Seal Rating | IP40 | Operate Time | :100µs |
| Switching Cycles | :5000000 | Ingress Protection | IP40 |
| Operating Temperature | +55°C | ||
