点击放大查看

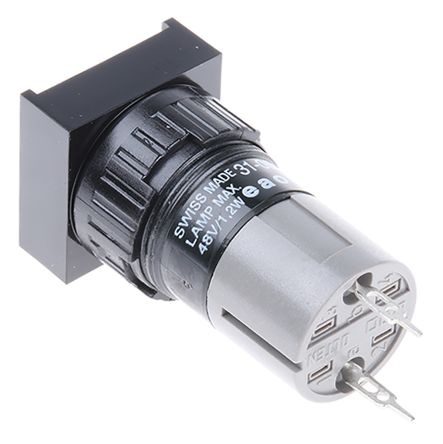

31-051.006
| Manufacturer | |
| Description | Square indicator - EAO 31 series INDICATOR, 18*18 INDSQBLKUNVLL EAO T-1 3/4 凸型 指示器 指示器, Faston，焊接接线片接端 18mm安装孔尺寸 |
| Category |
Business
| Lead Time | 60 Days | Subcategory | Misc Products |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365019 | ||
Electrical
| Lamp Type | :T-1 3/4 | Contact Rating (Current) | 5 A @ 250 V ac/dc |
Mechanical
| Width | :18mm | Length | :18mm |
| Weight | 0.004 | LED Color | White |
| Actuator Type | Button | Mounting Type | PCB |
| Contact Material | Gold Plated Silver | Size / Dimension | :T-1 3/4 |
| Depth Behind Panel | :36mm | Panel Cutout Shape | 18 x 18mm |
Product Info
| CAD Drawing | 3D CAD Model | Illumination | Yes |
| Industry Aliases | 31-051.006 | ||
Environmental
| Seal Rating | IP40 | Operating Temperature | +55°C |
Documents & Media
