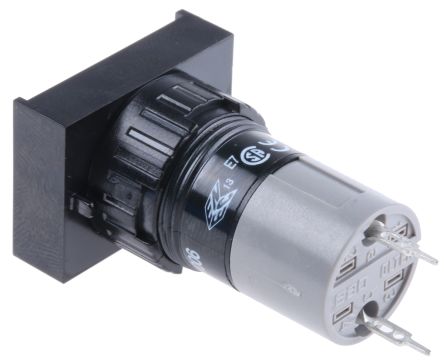

31-041.006
| Manufacturer | |
| Description | Rectangular indicator - EAO 31 series INDICATOR, 18*22 EAO IP40 PCB 照明 按钮开关, 5 A@ 250 V 交流/直流 |
| Category |
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365019 |
Electrical
| Lamp Type | :T-1 3/4 | Contact Rating (Current) | 5 A @ 250 V ac/dc |
Mechanical
| Width | :24mm | Length | :18mm |
| Weight | 0.004 | LED Color | White |
| Actuator Type | Button | Mounting Type | PCB |
| Contact Material | Gold Plated Silver | Size / Dimension | :T-1 3/4 |
| Depth Behind Panel | :36mm | Panel Cutout Shape | 18 x 24mm |
Product Info
| CAD Drawing | 3D CAD Model | Illumination | Yes |
Environmental
| Seal Rating | IP40 | Operating Temperature | +55°C |
