TL6105AF160QP
| Manufacturer | |
| Description | Tactile Switches 0.05A 50VAC SPST NO Silver SWITCH TACTILE SPST-NO 0.05A 50V TACT SWITCHES - SEALED THRU-HOLE |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 60 | Standard Package | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 50VDC | ||
Mechanical

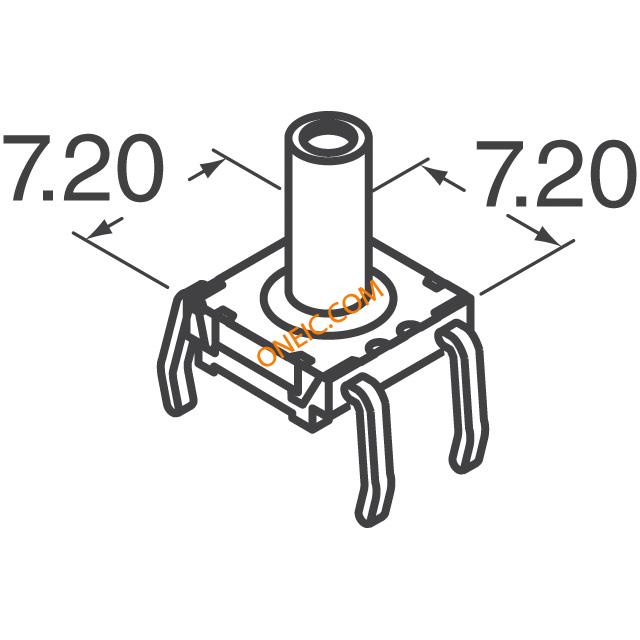

| Outline | 7.20mm x 7.20mm | Packaging | Bulk |
| Actuator Type | Standard | Mounting Type | Through Hole |
| Switch Travel | 0.25mm | Contact Finish | Silver |
| Operating Force | 160gf | Actuator Material | Polyamide (PA), Nylon |
| Termination Style | PC Pin | Actuator Orientation | Top Actuated |
| Actuator Height off PCB, Vertical | 4.70mm | ||
Product Info
| Type | Switches | Series | TL6100 |
| Features | Grounding Pin, Sealed - Fully | Illumination | Non-Illuminated |
| Card Standard | Tactile Switch | ||
Environmental
| Mechanical Life | 300,000 Cycles | Operating Temperature | -40°C ~ 85°C |
