TL59FF260Q
| Manufacturer | |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches Thruhole Radial lead SPST-NO 0.05A 12V Series TL59 Tact Switches |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4567CT | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 12 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 12VDC | ||
Mechanical

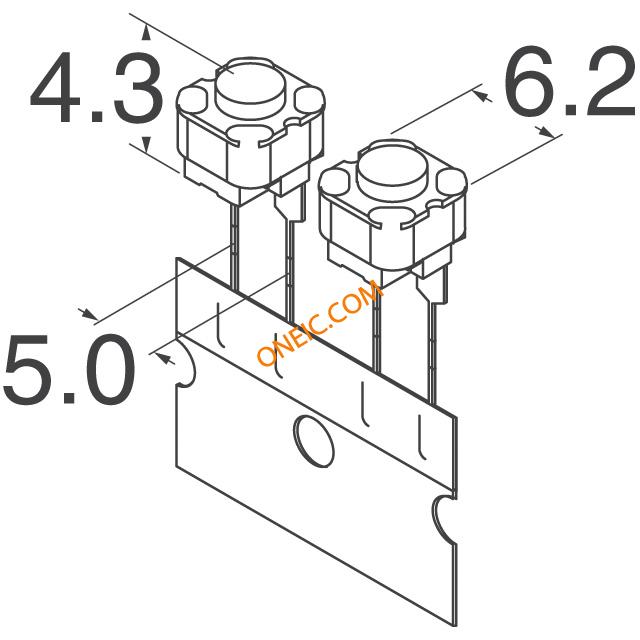

| Outline | 6.20mm x 6.20mm | Packaging | Tape & Box (TB) |
| Contact Form | SPST | Travel Range | 0.25 mm |
| Actuator Type | Standard | Mounting Type | Through Hole |
| Switch Travel | 0.25mm | Contact Finish | Silver |
| Mounting Style | Through Hole | Operating Force | 260gf |
| Actuator Material | Polybutylene Terephthalate (PBT) | Termination Style | PC Pin |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 7 mm |
| Actuator Height off PCB, Vertical | 7.00mm | ||
Product Info
| Type | Switches | Series | TL59-TL58 |
| Illumination | Non-Illuminated | Card Standard | Tactile Switch |
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | -20°C ~ 70°C |
