TL59AF160Q
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Tactile Switches | Standard Package | 1,000 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 12 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 12VDC | ||
Mechanical

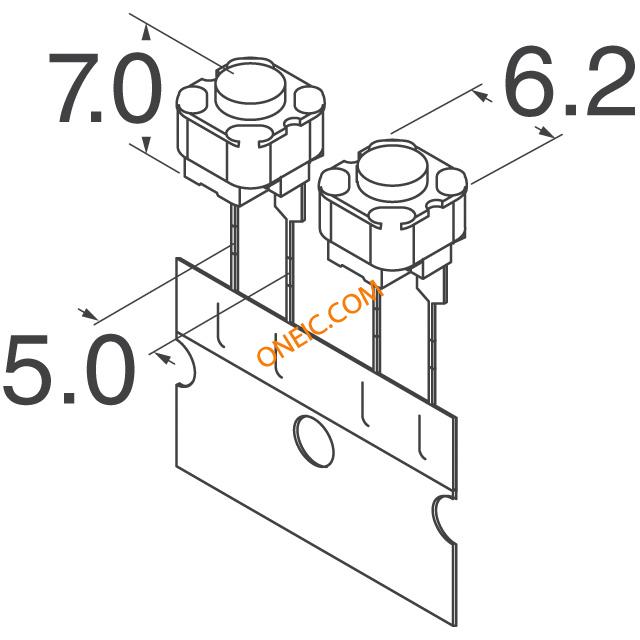

| Outline | 6.20mm x 6.20mm | Packaging | Tape & Box (TB) |
| Contact Form | SPST | Actuator Type | Standard |
| Mounting Type | Through Hole | Switch Travel | 0.25mm |
| Connector Type | No | Contact Finish | Silver |
| Mounting Style | Through Hole | Operating Force | 160gf |
| Actuator Material | Polybutylene Terephthalate (PBT) | Termination Style | PC Pin |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 5 mm |
| Actuator Height off PCB, Vertical | 5.00mm | ||
Product Info
| Type | Switches | Series | TL59 |
| Illumination | Non-Illuminated | Card Standard | Tactile Switch |
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | -20°C ~ 70°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- TL59, TL58 Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
