TL52AF160Q
| Manufacturer | |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches Sealed Radial Lead SPST-NO 0.05A 12V |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4673CT | Standard Package | 1,000 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical

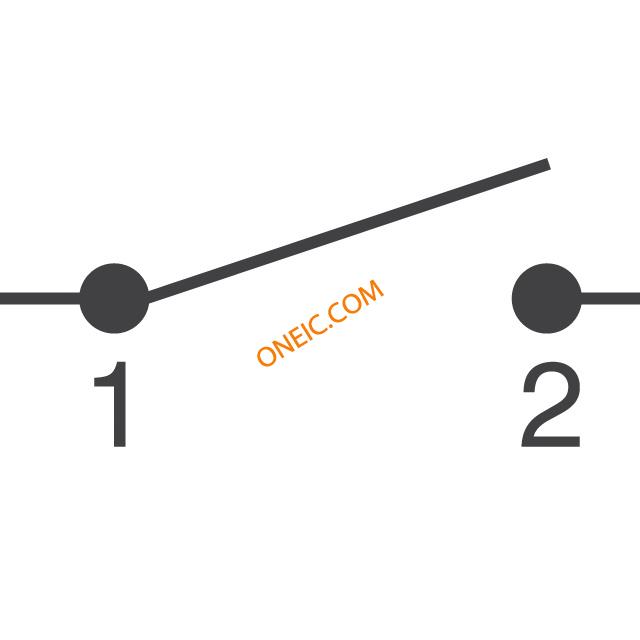

| Circuit | SPST-NO | Voltage Rating | 12 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 12VDC | ||
Mechanical

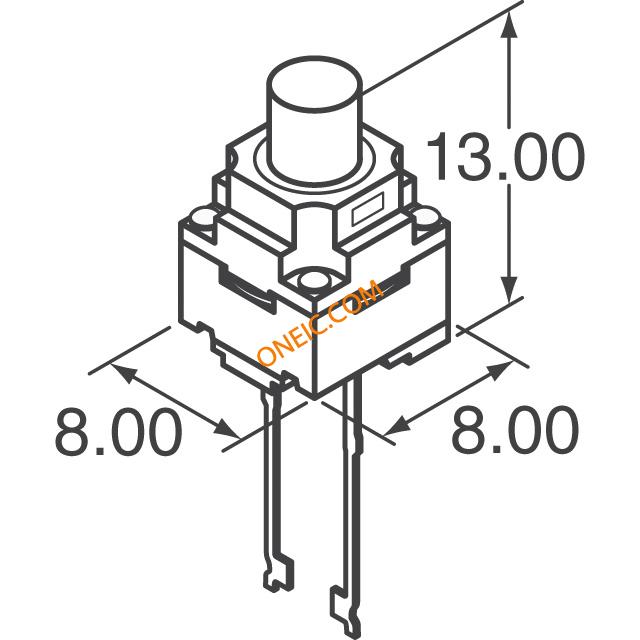

| Outline | 8.00mm x 8.00mm | Packaging | Tape & Box (TB) |
| Contact Form | SPST | Actuator Type | Standard |
| Mounting Type | Through Hole | Switch Travel | 0.30mm |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Operating Force | 160gf | Termination Style | PC Pin |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 13 mm |
| Actuator Height off PCB, Vertical | 13.00mm | ||
Product Info
| Series | TL52 | Illumination | Non-Illuminated |
Environmental
| Mechanical Life | 100,000 Cycles | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -25°C ~ 85°C | ||
