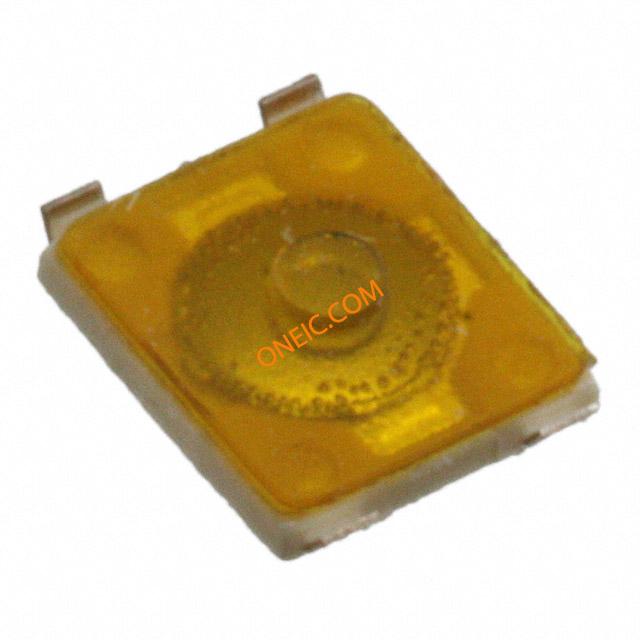

TL3700AF100QG
| Manufacturer | |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V Tactile Switches Ultra Miniature SMT Tact Switch TACTILE SWITCH, SPST, 20mA, 15VDC, SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4918TR | Standard Pack | 8,000 |
| Standard Package | 8,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365019 |
Electrical
| Circuit | SPST-NO | Voltage Rating | 15 V |
| Switch Function | Off-Mom | Current Rating (Max) | 20 mA |
| Current - Max/Contact | :20mA | Switch Function/Rating | :Off-(On) |
| Contact Rating @ Voltage | 0.02A @ 15VDC | Voltage - Supply (Vcc/Vdd) | :15V |
Mechanical
| Weight | 0 | Outline | 3.00mm x 2.60mm |
| Packaging | Tape & Reel (TR) | Contact Form | SPST |
| Actuator Type | Standard | Mounting Type | Surface Mount |
| Switch Travel | 0.15mm | Contact Finish | Silver |
| Mounting Style | Through Hole | Operating Force | 100gf |
| Termination Style | Gull Wing | Actuator Orientation | Top Actuated |
| Switch Actuation Level | :Top | Contact Layout, Typical | :SPST |
| Actuator Height off PCB, Vertical | 0.65mm | ||
Product Info
| Series | TL3700 | Illumination | Non-Illuminated |
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | -40°C ~ 85°C |
