TL3310AF200QG
| Manufacturer | |
| Description | SWITCH TACTILE SPST-NC 0.05A 50V Tactile Switches Tactile Switch SMT - NORM CLOSED Switch Tactile N.C. SPST Round Button Gull Wing 0.05A 50VDC 1.96N SMD Tact Switches |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4589TR | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NC | Voltage Rating | 50 V |
| Switch Function | On-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 50VDC | ||
Mechanical

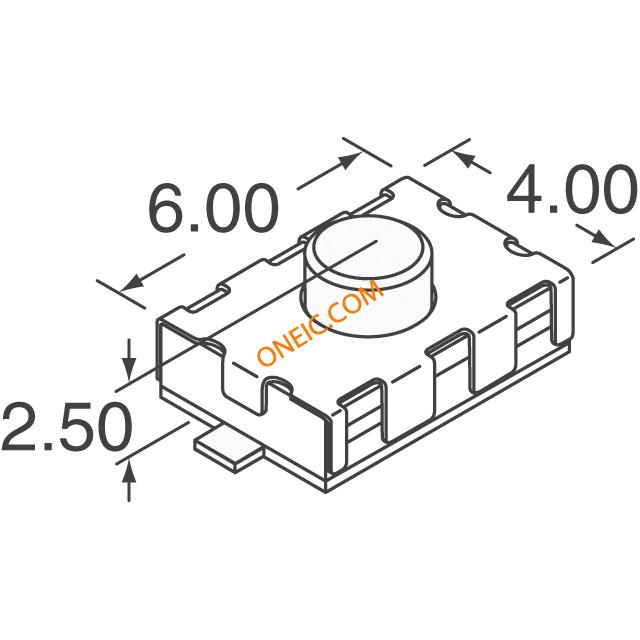

| Outline | 6.00mm x 3.80mm | Packaging | Tape & Reel (TR) |
| Contact Form | SPST | Travel Range | 0.5 mm +/- 0.2 mm |
| Actuator Type | Standard | Mounting Type | Surface Mount |
| Switch Travel | 0.50mm | Contact Finish | Silver |
| Mounting Style | Through Hole | Operating Force | 200gf |
| Actuator Material | Silicon Rubber | Termination Style | Gull Wing |
| Actuator Orientation | Top Actuated | Actuator Height off PCB, Vertical | 2.50mm |
Product Info
| Type | Switches | Series | TL3310 |
| Illumination | Non-Illuminated | Card Standard | Tactile Switch |
Environmental
| Mechanical Life | 50,000 Cycles | Operating Temperature | -20°C ~ 70°C |
