TL3302AF180QJ
| Manufacturer | |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches 3.5mm x 6mmSMT Tact SPST-NO 0.05A 12V Switch Tactile N.O. SPST Rectangular Button J-Lead 0.05A 12VDC 1.77N SMD T/R Series TL3302 Tact Switches, Surface Mount |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4576TR | Standard Package | 1,800 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 12 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 12VDC | ||
Mechanical

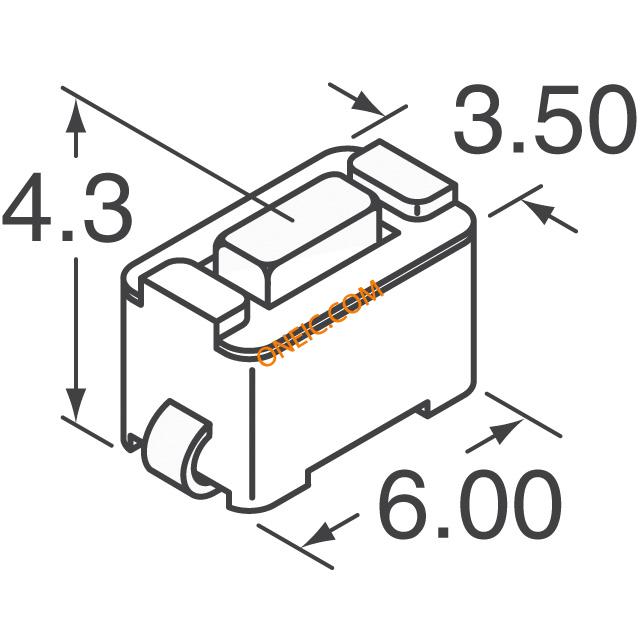

| Outline | 6.00mm x 3.50mm | Packaging | Tape & Reel (TR) |
| Contact Form | SPST | Travel Range | 0.25 mm |
| Actuator Type | Rectangular Button | Mounting Type | Surface Mount |
| Switch Travel | 0.25mm | Contact Finish | Silver |
| Mounting Style | SMD/SMT | Operating Force | 180gf |
| Actuator Material | Polyphenylene Sulfide (PPS) | Termination Style | J Lead |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 4.3 mm |
| Actuator Height off PCB, Vertical | 4.30mm | ||
Product Info
| Type | Switches | Series | TL3302 |
| Features | Tactile Feedback | Illumination | Non-Illuminated |
| Card Standard | Tactile Switch | ||
Environmental
| Mechanical Life | 40,000 Cycles | Operating Temperature | -20°C ~ 70°C |
