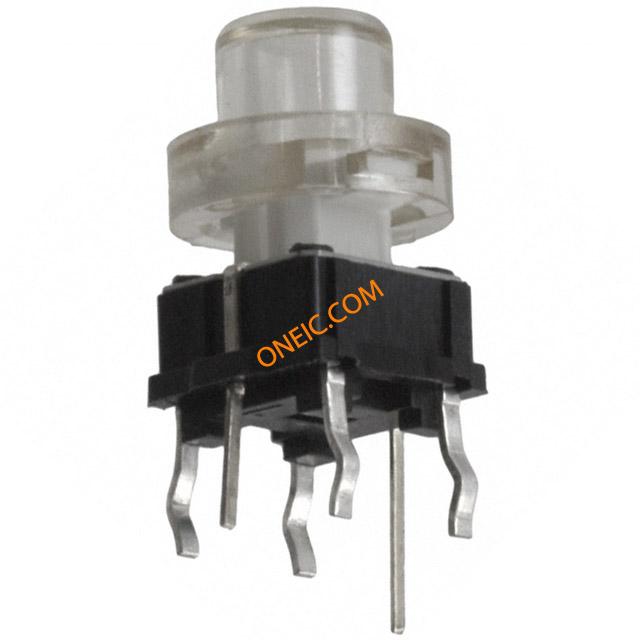

TL1265BQSCLR
| Manufacturer | |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches IllumTact Switch Blue LED CLR CAP |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4966 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 12 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Illumination Voltage (Nominal) | 3.5 VDC |
Mechanical
| Outline | 7.00mm x 6.80mm | Packaging | Bulk |
| Contact Form | SPST | Actuator Type | Round Button |
| Mounting Type | Through Hole | Switch Travel | 0.20mm |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Operating Force | 160gf | Termination Style | PC Pin |
| Illumination Color | Blue | Actuator Orientation | Top Actuated |
| Illumination Type, Color | LED, Blue | Actuator Height off PCB, Vertical | 12.00mm |
Product Info
| Series | TL1265 | Illumination | Illuminated |
Environmental
| Mechanical Life | 500,000 Cycles | Operating Temperature | -20°C ~ 70°C |
