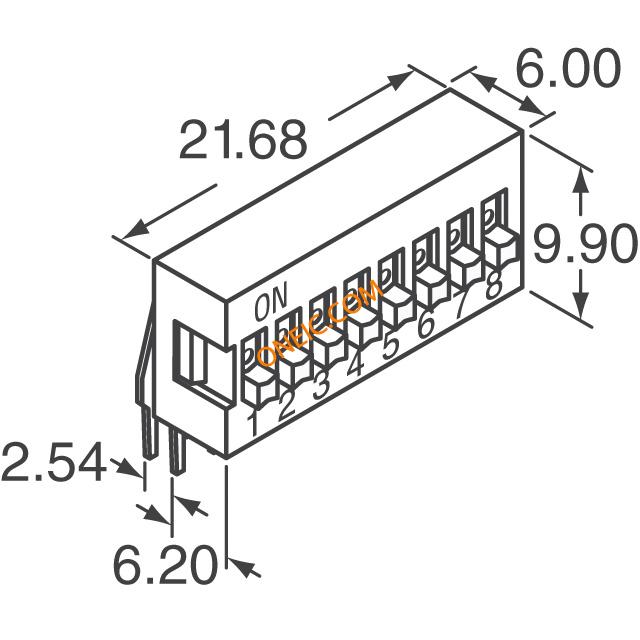

KAS2108ET
| Manufacturer | |
| Description | DIP Switches / SIP Switches 8 PositionR/A PC Pin Extended Tape Sealed SW DIP SLIDE SPST 8 POS SEAL 24V DIP Switch Type: Slide Ratings: 25mA @ 24V DC Number of Positions: 8 Termination: PC Pin (Right Angle) |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4515 | Standard Package | 21 |
Electrical
| Circuit | SPST | Contact Resistance | Initial:50 m? typical @ 2-4V DC @ 100mA, After Life: 100m? typical @ 2-4 DC @ 100mA |
| Connector Impedance | Phosphor Bronze with gold plate over nickel plate | Dielectric Strength | 500V RMS min. @ sea level between adjacent terminals |
| Insulation Resistance | 100 M? Min. @ 500V DC | Contact Rating @ Voltage | 0.025A @ 24VDC |
Mechanical
| Seal | Top Tape Sealed | Orientation | Side Actuated |
| Termination | PC Pins (Right Angle) | Travel Range | 2.0 mm typical |
| Actuator Type | Standard | Housing Color | Glass filled polyester (PBT) UL94-V0 |
| Mounting Type | Through Hole | Actuator Level | Raised |
| Operating Force | 1000 gf max. | Number of Contacts | Phosphor Bronze with gold plate over nickel plate |
| Number of Positions | 8 | Contact Layout, Typical | SPST |
| Actuator Height off PCB, Vertical | Raised | ||
Product Info
| Type | Slide | Series | KAS |
| Features | Wave: 500 F (260 C) for 5s max; Hand: 30W soldering iron @ 608 F (320 C) for 2s typical. Keep all switches in the OFF position during soldering and cleaning process. | Washable | Yes |
| Circuit Type | SPST | Card Standard | DIP Switch |
| Tape Included | Mylar | ||
Environmental
| Ratings | 25 mA @ 24 VDC | Vibration | To MIL-STD-202F, Method 201 A |
| Mechanical Life | 2,000 make-and-break cycles, each circuit | Temperature Range | Operating/Storage: -40° C to 85° C |
