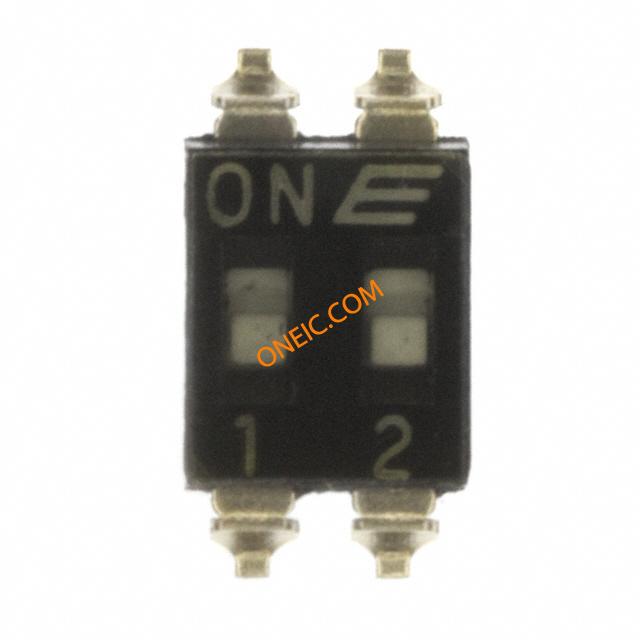

KAJ02TGGT
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4420 | Standard Package | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST | Contact Resistance | initial 50m? typical @ 2-4 VCD, 100mA |
| Dielectric Strength | 500 V rms @ sea level between adjacent terminals | Insulation Resistance | 100 M? min. |
| Contact Rating @ Voltage | 0.025 A | ||
Mechanical
| Base Type | PPS UL94 V0, black finish | Packaging | Standard Tape |
| Orientation | Top Actuated | Termination | Gull Wing |
| Contact Form | SPST | Contact Type | Gold-plated copper alloy |
| Actuator Type | Standard | Mounting Type | Surface Mount |
| Actuator Level | Recessed | Contact Finish | Gold |
| Termination Style | Gull Wing | Number of Positions | 2 |
| Shell Size - Insert | PPS UL94 V0, black finish | ||
Product Info
| Type | Low Profile | Washable | Yes |
| Switch Type | DIP | Card Standard | DIP Switch |
Environmental
| Ratings | 25mA @ 24 VDC | Seal Rating | Tape Seal: |
| Mechanical Life | 2,000 cycles, typical | Operating Temperature | - 40 C to + 85 C |
Documents & Media
Online Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- KAJ02TGGT.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
