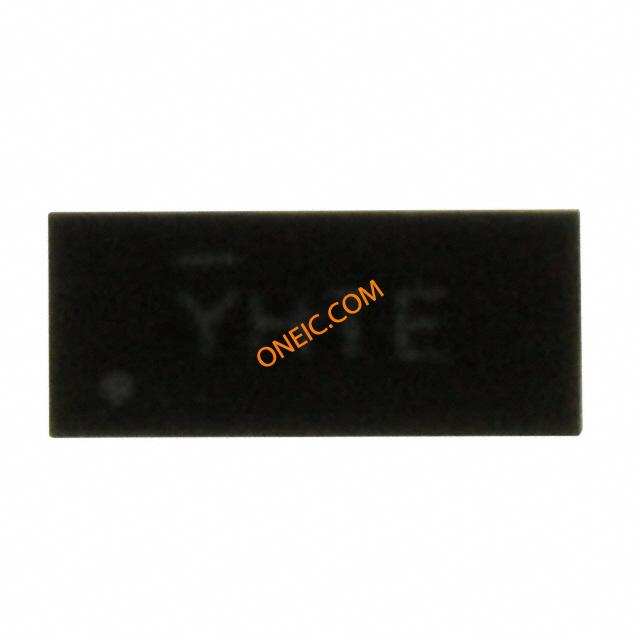

PI3A3160CZGEX
| Manufacturer | |
| Description | Analog Switch Dual SPDT 12-Pin TDFN T/R Analog Switch ICs Dual SPDT Analog Sw 3.0V 12-PIN IC SWITCH DUAL SPDT 12TDFN |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PI3A3160CZGEXTR | Product Category | Analog Switch ICs |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3500 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | 2 x SPDT | Input Signal | Yes |
| Turn On Time | 50@3.3V ns | Current - Output | 280µA |
| Current - Supply | 0.35 mA | Number of Inputs | 2 |
| Voltage - Supply | 1.5 V | Number of Outputs | 4 |
| Power Supply Type | Single | Number of Channels | 2 |
| Current - Switching | 0.28 mA | Voltage Supply Source | Single Supply |
| Switch Function/Rating | SPDT | Power Dissipation (Max) | 0.5 W |
| On-State Resistance (Max) | 1.3@2.7V Ohm | Switch Time (Ton, Toff) (Max) | 50 ns |
| Common Mode Transient Immunity (Min) | Extended Industrial | ||
Mechanical
| Width | 3 | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 12TDFN | Length - Overall | 3.5 |
| Package Quantity | TDFN | Number of Positions | 12 |
| Shell Size - Insert | 0.75(Max) | Supplier Device Package | 12-TDFN (3.0x3.5) |
Product Info
| Type | Analog Switch | Function | Switch |
| Polarity | Non-Inverting | Configuration | Dual SPDT |
| Number of Switches | 2 | Printed Circuit Board | 12 |
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
