MMBZ20VAL-7
| Manufacturer | |
| Description | TVS Diode Arrays 20V 225mW ESD Suppressor TVS 16KV 3-Pin SOT-23 T/R TVS DIODE 17VWM 28VC SOT23-3 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MMBZ20VALDITR | Product Category | TVS Diode Arrays |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | No | EU RoHS | Not Compliant |
| ESD Protection | 16@HBM | ||
Electrical
| Channels | 2 Channels | Voltage Rating | 17 |
| Current - Surge | 1.4 A | Voltage - Supply | 17V |
| Number of Elements | 2 | Power - Peak Pulse | 40 W |
| Voltage - Clamping | 28 V | Voltage - Breakdown | 19 V |
| Power Line Protection | No | Voltage - Supply (Min) | 17 V |
| Unidirectional Channels | 2 | Current - Reverse Leakage @ Vr | 0.05 |
| Current - Peak Pulse (10/1000us) | 1.4A | ||
Mechanical
| Packaging | Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |

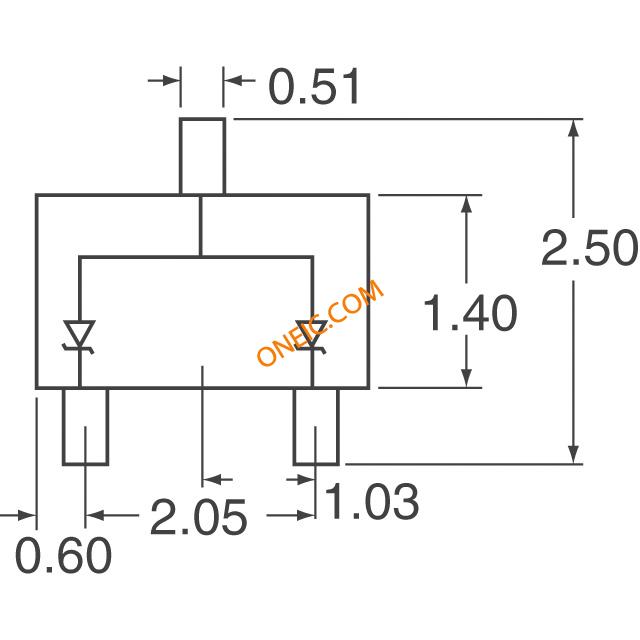

| Package / Case | SOT-23 | Package Quantity | SOT-23 |
| Size / Dimension | 2.9 mm W x 1.3 mm L x 1 mm H | Termination Style | SMD/SMT |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Type | TVS | Series | MMBZxxxAL |
| Polarity | Unidirectional | Applications | General Purpose |
| Configuration | Dual Common Anode|Single | Port Direction | Uni-Directional|Bi-Directional |
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | - 65 C |
