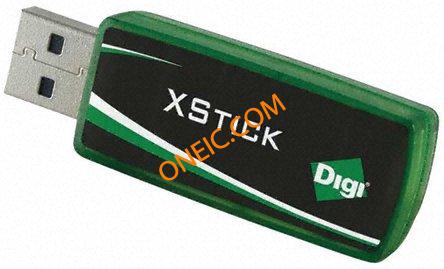

XU-Z11
| Manufacturer | |
| Description | Zigbee / 802.15.4 Modules XStick USB Adptr ZB RF/DiN Products XSTICK USB Digi International XU-Z11 4.5dBm -90dBm USB WPAN 5V dc 58.3 x 20.3 x 10.8mm 10.8mm 58.3mm +85°C -40°C 20.3mm Digi International ZigBee 模块, +4.5dBm, -90dBm, USB总线, WPAN网络接口, 5V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Zigbee / 802.15.4 Modules | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 250 Kbps | Frequency | 2.4GHz |
| Interface | USB | Power - Max | 4.5dBm |
| Sensitivity | - 90 dBm | Output Power | 2.8 mW |
| Sensing Range | 66 ft, 164 ft | Power - Output | 4.5dBm |
| Data Rate (Max) | 250kbps | Current - Supply | 47 mA |
| Voltage - Supply | 5 V | Available Frequency Range | USB |
| Current - Supply (Main IC) | 51 mA | Frequency Bands (Low / High) | 2.4 GHz |
| Voltage - Input Offset (Max) | -90dBm | ||
Mechanical
| Width | 20.3mm | Height | 10.8mm |
| Length | 58.3mm | Size / Dimension | 45.7 mm x 17.8 mm x 10.2 mm |
| Antenna Connector | Internal | ||
Product Info
| Function | Transceiver, ZigBee | Applications | ISM |
| Network Technology | WPAN | Modulation or Protocol | DSSS |
Environmental
| Operating Temperature | + 85 C | ||
