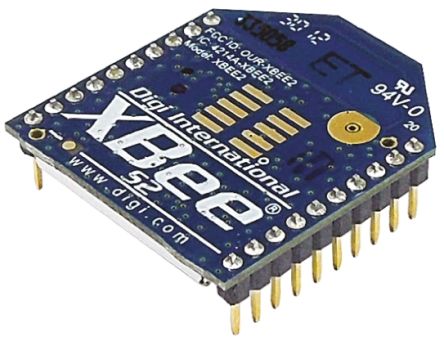

XB24-Z7PIT-004
| Manufacturer | |
| Description | Zigbee / 802.15.4モジュール XBee ZB w/PCB Ant AT Router F/W XBEE PRO SET 1MW PCB ANTENNA XBee Low Power Zigbee Mod,PCB Ant 1mW Zigbee / 802.15.4 Modules XBee ZB w/PCB Ant AT Router F/W Digi International ZigBee 模块, +3dBm, -96dBm, ADC，API，CMOS，DIO，UART，USB总线, 盘，RS232，RS485网络接口 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Data Rate | 250 kbps | Frequency | 2.4GHz |
| Interface | ADC，API，CMOS，DIO，UART，USB | Power - Max | +3dBm |
| Sensitivity | -96dBm | Output Power | 1 mW |
| Sensing Range | 120 m | Data Interface | PCB, Through Hole |
| Power - Output | 1dBm | Data Rate (Max) | 250kbps |
| Current - Supply | 38 mA | Voltage - Supply | 2.1 V ~ 3.6 V |
| Current - Output 1 | 35mA | Current - Receiving | 38mA |
| Current - Transmitting | 35mA | Available Frequency Range | ADC, API, CMOS, DIO, UART, USB |
| Current - Supply (Main IC) | 35 mA | Frequency Bands (Low / High) | 2.4 GHz |
| Voltage - Input Offset (Max) | -96dBm | ||
Mechanical
| Width | 27.61mm | Height | 2.79mm |
| Length | 24.38mm | Packaging | Bulk |
| Connector Type | PCB, Through Hole | Package / Case | Module |
| Size / Dimension | 27.61 x 24.38 x 2.79mm | Antenna Connector | On-Board, Trace |
Product Info
| Series | XBee™ | Applications | Wireless Mesh Networks |
| Network Technology | Pan, RS232, RS485 | Modulation or Protocol | DSSS |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
