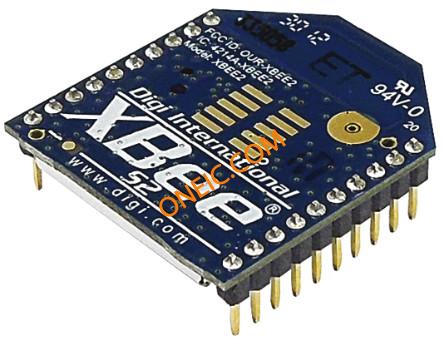

XB24-BPIT-004
| Manufacturer | |
| Description | Zigbee / 802.15.4モジュール XBee Series 2 w/PCB Ant XBEE ZNET 2.5 1MW PCB ANT AT XBee Series 2 RF Module PCB Antenna 1mW Zigbee / 802.15.4 Modules XBee Series 2 w/PCB Ant Digi International ZigBee 模块, +3dBm, -96dBm, API，UART，USB总线, 盘，RS232，RS485网络接口, 2.1 → 3.6V |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Data Rate | 250 kbps | Frequency | 2.4GHz |
| Interface | API，UART，USB | Power - Max | +3dBm |
| Sensitivity | -95dBm | Output Power | 63 mW |
| Sensing Range | 100 m | Data Interface | PCB, Through Hole |
| Power - Output | 1dBm | Data Rate (Max) | 250kbps |
| Voltage - Supply | 2.1 V ~ 3.6 V | Current - Receiving | 38mA |
| Current - Transmitting | 35mA | Available Frequency Range | API, UART, USB |
| Frequency Bands (Low / High) | 2.4 GHz | Voltage - Input Offset (Max) | -96dBm |
Mechanical
| Width | 27.61mm | Height | 2.79mm |
| Length | 24.38mm | Packaging | Bulk |
| Package / Case | Module | Size / Dimension | 27.61 x 24.38 x 2.79mm |
| Antenna Connector | On-Board, Trace | ||
Product Info
| Applications | Home/Building Automation, Industrial Control, ZigBee™ | Network Technology | Pan, RS232, RS485 |
| Modulation or Protocol | 802.15.4 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
