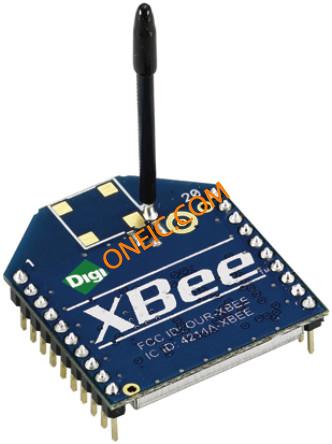

XB24-AWI-001

Manufacturer	Digi International Inc.
Description	Zigbee / 802.15.4 Modules 2.4Ghz Xbee 256000 BAUD ZigBee/802.15.4 Modules 2400MHz 250Kbps 20-Pin MODULE 802.15.4 1MW W/WIRE ANT XBee RF Module with Whip Antenna 1mW RF MODULE, TXRX, XBEE, WIRE ANT ZigBee module 2.4 GHz 1 mW, Wire antenna, XB24-AWI-001, Digi Digi International ZigBee 模块, 0dBm, -92dBm, UART（通用异步收发器）总线, 串联，WPAN网络接口, 2.8 → 3.4V
Category	RF and Wireless SolutionsRFRFID Integrated Circuits

对参数有疑问？问 AI 助手

Business

Other Names	XB24AWI001	Product Category	Zigbee / 802.15.4 Modules
Standard Package	1	Factory Pack Quantity	20

RoHS	RoHS Compliant	EU RoHS	Compliant
Tariff No	85235290

Data Rate	250 Kbps	Frequency	2.4GHz
Interface	UART	Modulation	DSSS
Power - Max	0dBm	Sensitivity	- 92 dBm
Output Power	1 mW	Sensing Range	100 ft, 300 ft
Data Interface	PCB, Through Hole	Power - Output	0dBm
Voltage Rating	2.8	Data Rate (Max)	250kbps
Frequency - Max	2400(Typ)	Current - Supply	50 mA
Voltage - Supply	2.8 V to 3.4 V	Number of Channels	16
Current - Receiving	50mA	Current - Transmitting	45mA
Voltage - Supply (Min)	3.4	Available Frequency Range	UART
Current - Supply (Main IC)	45 mA	Frequency Bands (Low / High)	2.4 GHz
Voltage - Input Offset (Max)	-92dBm	Common Mode Transient Immunity (Min)	Industrial

Type	:XBee RF Module	Applications	Home/Building Automation, Industrial Control, ZigBee™
Kit Contents	:Long Range Data Integrity, Low Power, Advanced Networking & Security, ADC and I/O Line Support	Module/Board Type	Module
Tool Type Feature	:XBee Module	Network Technology	Serial, WPAN
Printed Circuit Board	20	MCU Supported Families	:XBee
Modulation or Protocol	802.15.4

Operating Temperature

+ 85 C

Maximum Temperature Limit

:85°C
