586-2406-205F
| Manufacturer | |

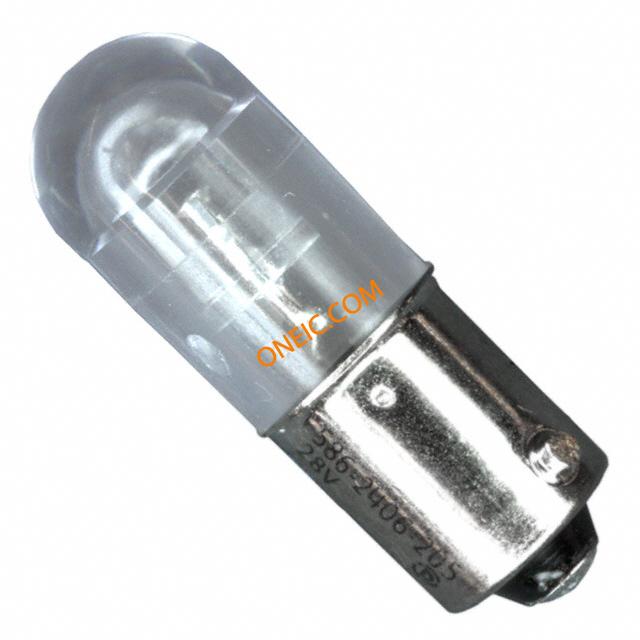

| Description | LED Replacement Lamps - Based LEDs White, x0.333 y0.365 412mcd, 7.5mA LED Uni-Color White 2-Pin BASED LED T3 1/4 WHT 28V NONPOL LED; White; 412 mcd (Typ.) mcd; T-3-1/4; Miniature Bayonet; 28 VDC; 1.15 in. Lamp;LED;T-31/4;MiniBayonet(BA9s);White;Clear;28V;7.5mA;412mcd;100KHrs;NonPol LED indicator lamp BA9s 28 VDC, 586-2406-205F, Dialight 白色 BA9s LED指示灯灯泡, 单芯片, 9 mm灯, 10mm直径, 28 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Single Chip Based LEDs | Product Category | LED Replacement Lamps - Based LEDs |
| Standard Package | 5 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Bulb | T-31/4 | Current | 7.5 mA |
| Voltage | 28 VDC | Lamp Type | T3-1/4 |
| Lamp Output | Yes | Luminous Flux | 412mcd |
| Voltage Rating | 28VAC/VDC | Voltage - Supply | 28V |
| LED Forward Current | 7.5 mA | LED Forward Voltage | 28 V |
| Millicandela Rating | 412mcd | Current Rating (Max) | 8mA |
| Voltage - Supply (Min) | 28VAC/VDC | Current - Peak Pulse (10/1000us) | 7.5(Typ) |
Mechanical
| Color | White | Length | 28.75 mm |
| Diameter | 10mm | Base Type | Miniature Bayonet |
| LED Color | 白色 | Packaging | Bulk |
| Lens Color | Clear | Lens Style | Circular |
| Light Color | white | Weight (g): | 1.20000 |
| Lens Diameter | 9 mm | Mounting Type | Snap in |
| Color - Legend | X = 0.33 / Y = 0.365 | Material - Core | AlGaInP|InGaN |
| Size / Dimension | T - 3 1/4 | Illumination Color | White |
| Number of Positions | 2 | Shell Size - Insert | 28.75 |
| Diameter - Outside, Non-Expanded | 9 x 29 mm | ||
Product Info
| Type | Uni-Color | Series | 586 |
| Socket | BA9s | Socket Type | BA9s |
| Applications | Incandescent Replacements, Indicator Lights | Configuration | Single |
| Number of LEDs | 1 | Can Replace Lamps | Multiple Miniature Bayonet Lamps |
| Utilized IC / Part | 单芯片 | Printed Circuit Board | 2 |
Environmental
| Operate Time | 100000 | Mechanical Life | 100000hrs. |
| Operational Life | 100000h | Operating Temperature | 85 |
| Luminous Flux @ Current/Temperature | 412 mcd | ||
