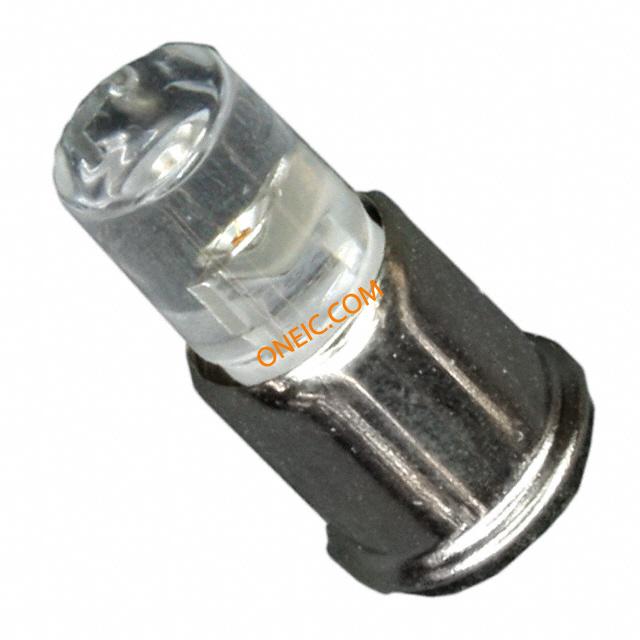

586-1103-105F
| Manufacturer | |
| Description | LED Replacement Lamps - Based LEDs T1 3/4 MIDGET FLANGE YEL 28V P LED Uni-Color Yellow 592nm 2-Pin BASED LED T1 3/4 MIDG YLW 28V P 586-1103-105F LED, MID GROOVE, 28V, YELLOW Lamp;LED;T-13/4;MidgetFlange;Yellow;Clear;28VDC;10mA;775mcd;100KHrs;CntrPos |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Single Chip Based LEDs | Product Category | LED Replacement Lamps - Based LEDs |
| Standard Package | 5 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85414010 |
Electrical
| Bulb | T-13/4 | Lamp Type | :T-1 3/4 |
| Beam Angle | :- | Wavelength | 592nm |
| Lamp Output | Yes | Luminous Flux | 775mcd |
| Voltage - Supply | 28V | Wavelength - Peak | :592nm |
| LED Forward Voltage | 28 V | Millicandela Rating | 775mcd |
| Current Rating (Max) | :10mA | Voltage - Supply (Min) | 28VDC |
| Current - DC Forward (If) (Max) | :10mA | Current - Peak Pulse (10/1000us) | 10(Typ) |
Mechanical
| Color | Yellow | Width | 5.89 |
| Weight | 0.0125 | Base Type | Midget Flange |
| LED Color | :Yellow | Packaging | Bulk |
| Lens Style | Circular | Weight (g): | 0.80000 |
| Mounting Type | Panel | Material - Core | AlGaInP|InGaN |
| Length - Overall | 5.89 | Size / Dimension | T - 1 3/4 |
| Color - Connectors | :Yellow | Illumination Color | Yellow |
| Number of Positions | 2 | Shell Size - Insert | 14.71 |
Product Info
| Type | Uni-Color | Series | 586 |
| Applications | Incandescent Replacements, Indicator Lights | Configuration | Single |
| Number of LEDs | 1 | Can Replace Lamps | Multiple Midget Flange Base Lamps |
| Printed Circuit Board | 2 | ||
Environmental
| Lamp Life | :100000h | Operate Time | 100000 |
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | :80°C |
| Luminous Flux @ Current/Temperature | 775 mcd | ||
