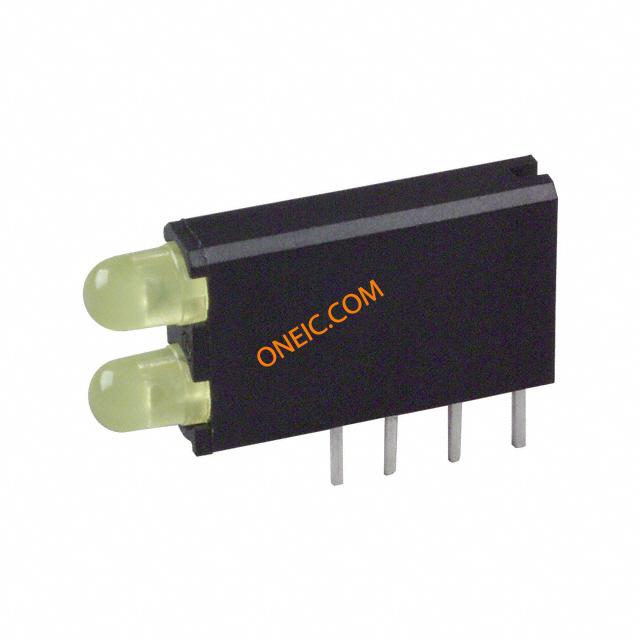

569-0113-300F
| Manufacturer | |
| Description | LED Circuit Board Indicators YELLOW DIFFUSED LED Bi-Level Uni-Color Yellow 585nm 4-Pin Bulk LED 2HI 3MM NARROW YELLOW PC MNT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Circuit Board Indicators | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 20mA | Optic Size | 3 mm |
| Wavelength | 585 nm | Lamp Output | No |
| Luminous Flux | 10mcd | Viewing Angle | 60 deg |
| Voltage Rating | 2.1V | Wavelength - Peak | 585nm |
| LED Forward Current | 10 mA | LED Forward Voltage | 2.1 V |
| Millicandela Rating | 10mcd | Power Dissipation (Max) | 60 |
| Current - Peak Pulse (10/1000us) | 20 | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical

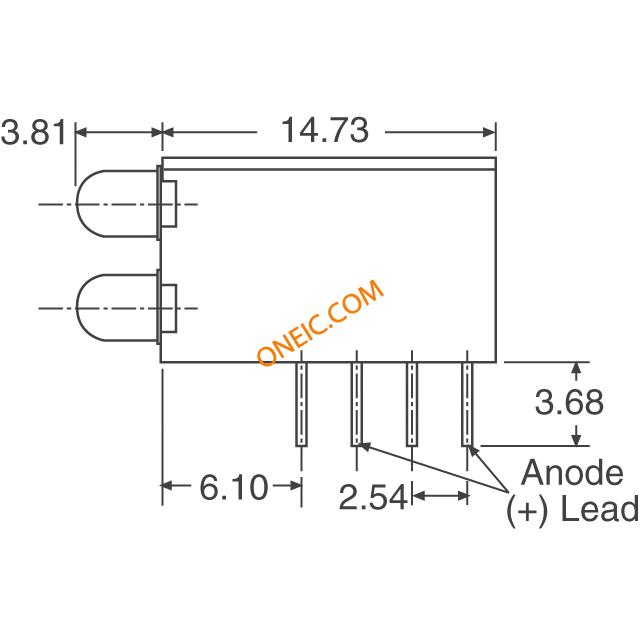

| Color | Yellow | Width | 18.54 |
| Packaging | Bulk | Lens Style | Circular |
| Mounting Type | Through Hole | Mounting Style | Right Angle |

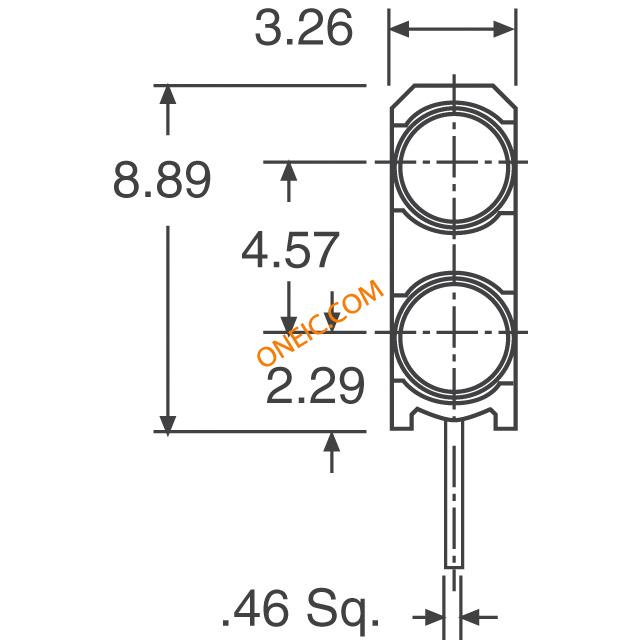

| Lens Style/Size | Round with Domed Top, 3mm | Length - Overall | 3.26 |
| Illumination Color | Yellow | Number of Positions | 4 |
| Shell Size - Insert | 8.89 | ||
Product Info
| Type | Bi-Level Uni-Color | Series | 569 |
| Lens Type | Diffused | Configuration | 2 High |
| Number of LEDs | 2 | Printed Circuit Board | 4 |
Environmental
| Operating Temperature | 100 | Luminous Flux @ Current/Temperature | 10 mcd |
