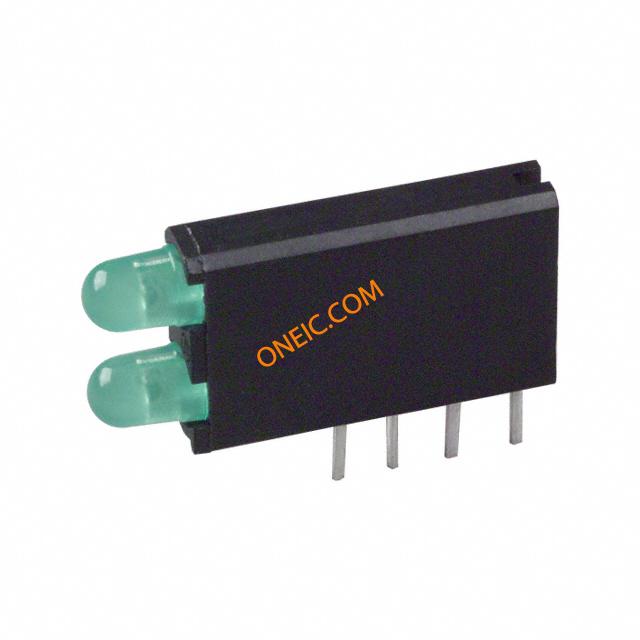

569-0112-200F
| Manufacturer | |
| Description | LED Circuit Board Indicators GREEN DIFFUSED LED Bi-Level Uni-Color Green 565nm 4-Pin Bulk LED 2HI 3MM NARROW GREEN PC MNT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Circuit Board Indicators | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 20mA | Optic Size | 3 mm |
| Wavelength | 565 nm | Lamp Output | No |
| Luminous Flux | 12.6mcd | Viewing Angle | 60 deg |
| Voltage Rating | 2.1V | Wavelength - Peak | 565nm |
| LED Forward Current | 10 mA | LED Forward Voltage | 2.1 V |
| Millicandela Rating | 12.6mcd | Current Rating (Max) | 20mA |
| Power Dissipation (Max) | 100 | Current - Peak Pulse (10/1000us) | 30 |
| MSCP (Mean Spherical Candle Power) | 12.6mcd | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical
| Color | Green | Width | 18.54 |
| Packaging | Bulk | Lens Style | Circular |
| Mounting Type | Through Hole | Mounting Style | Right Angle |
| Lens Style/Size | Round with Domed Top, 3mm | Length - Overall | 3.26 |
| Illumination Color | Green | Number of Positions | 4 |
| Shell Size - Insert | 8.89 | ||
Product Info
| Type | Bi-Level Uni-Color | Series | 569 |
| Lens Type | Colored Diffused | Configuration | 2 High |
| Number of LEDs | 2 | Channels per IC | 2 High |
| Output Configuration | Through Hole, Right Angle | Printed Circuit Board | 4 |
Environmental
| Operating Temperature | 100 | Luminous Flux @ Current/Temperature | 12.6 mcd |
